Busbars in the Electric Vehicle Industry

As the global demand for sustainable transportation increases, electric vehicles (EVs) are fast becoming an important part of the future of transportation. Among the core components of EV technology, battery packs and power transmission systems play a crucial role.Busbar, as a key component in the power transmission system, has been widely used and researched due to its high performance and reliability.

What is Busbar?

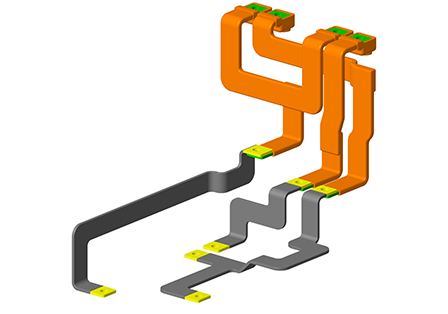

A Busbar (busbar) is a conductive strip or tape, usually made of copper, aluminum or other highly conductive materials. It is mainly used in electrical systems for the distribution and transmission of electrical energy. In electric vehicles, the role of the Busbar is to transmit the electrical energy generated by the battery pack to the electric motor and other key components such as inverters, chargers, etc.

Types of Busbar

• Copper Busbar:Copper has excellent electrical and thermal conductivity, so copper busbars are very common in high power applications. However, the high cost of copper limits its use in some low-cost applications.

• Aluminum Busbar:While slightly less conductive than copper, aluminum is lightweight and low-cost, making it suitable for both weight-sensitive and cost-sensitive applications. Aluminum Busbars are also widely used in electric vehicles.

• Solid Busbar:This is the most basic form of Busbar, usually a long strip of copper or aluminum. Solid Busbar has high mechanical strength and good electrical conductivity.

• Laminated Busbar:This type of Busbar consists of multiple layers of conductive and insulating materials laminated together. Laminated Busbar has better EMC and thermal management properties.

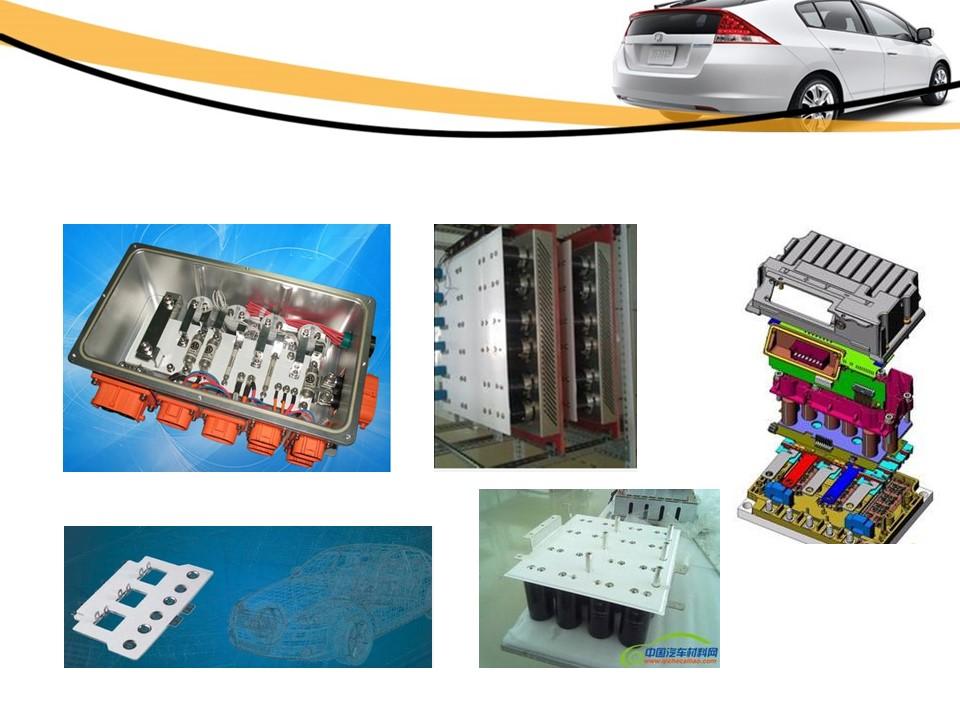

Busbar Applications in Electric Vehicles

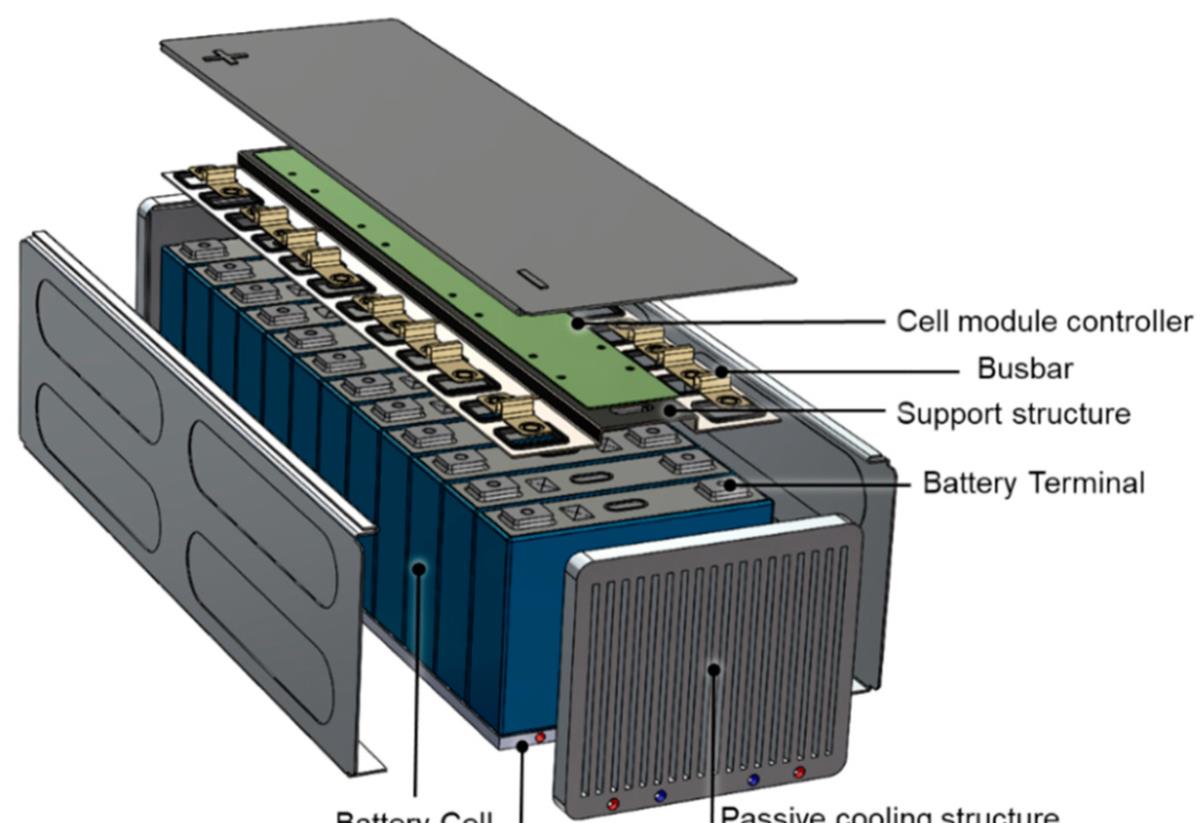

• Battery Management System (BMS):Battery Management System (BMS) is one of the core components of an electric vehicle, and its main function is to monitor and manage the performance of the battery pack to ensure the safe and efficient operation of the battery.Busbar plays a key role in the BMS in the transmission of power. Through the Busbar, each cell in the battery pack can be efficiently connected to the system for even distribution and transmission of electrical energy.

• Electric Drive System:The electric drive system, including the electric motor and inverter, is the power source of electric vehicles.Busbar is used in the electric drive system to connect the battery pack with the electric motor and inverter to ensure efficient transmission and conversion of electric energy. Laminated Busbar is widely used in electric drive system due to its excellent EMC and thermal management performance.

• Charging System:The charging system of electric vehicles is to transfer the external power to the battery pack through the charger.Busbar is used in the charging system to transfer the charging current efficiently and reduce the energy loss. Especially in fast charging systems, the conductivity and heat dissipation properties of the Busbar are particularly important to ensure an efficient and safe charging process.

Advantages of Busbar

• High performance:The high conductivity and low resistance of the Busbar enables it to transfer high currents efficiently, reducing energy losses and improving the overall efficiency of the electric vehicle.

• Reliability:Because Busbars are typically made of high-strength and durable materials, they have superior mechanical properties and are able to maintain stable performance in harsh operating environments. In addition, the insulating layer and structural design of laminated Busbars provide good electromagnetic compatibility, reducing electromagnetic interference and improving system reliability.

• Thermal Management:The design of Busbar provides good thermal management performance. In particular, the multi-layer structure of the laminated Busbar helps to dissipate heat, prevent localized overheating, and ensure the safe operation of the EV system.

• Modular design:The modular design of Busbar makes it easy to install and maintain. Different EV components can be connected by standardized Busbar, enabling flexible configuration and quick replacement, reducing maintenance time and cost.

Busbar manufacturing process

The manufacturing process for Busbar is critical to its performance and application. Common manufacturing processes include:

• Extrusion:Extrusion is an efficient Busbar manufacturing process for mass production. By means of an extruder, a metallic material, such as copper or aluminum, is extruded into the desired shape and size. Busbars produced by this process have good mechanical strength and electrical conductivity.

• Lamination:The lamination process is used to manufacture laminated Busbars, where multiple layers of electrically conductive and insulating materials are superimposed and pressed to form Busbars with excellent EMC and thermal management properties. laminated Busbars are typically used in application scenarios where high performance and reliability are required.

• Soldering and Joining Technologies:Soldering and joining technologies are used to join busbars to other components. These technologies include laser welding, ultrasonic welding and mechanical joining to ensure a reliable connection and efficient power transfer between the Busbar and other components.

Future trends

Busbar technology continues to evolve as electric vehicle technology continues to advance and market demand increases. Future trends include:

• Material innovation:The development of new materials will further enhance the performance of Busbar. For example, the application of composites and nanomaterials can improve the conductivity and mechanical properties of Busbar while reducing weight and cost.

• Advanced Manufacturing Technologies:The development of 3D printing and smart manufacturing technologies will make the design and production of Busbar more flexible and efficient. These technologies can realize more complex and high-precision Busbar structures to meet the needs of different application scenarios.

• Integrated design:With the trend of integration in electric vehicle systems, Busbar will be more integrated with other components to form a more compact and efficient power transmission system. The integrated design will reduce the size and weight of the system and improve overall efficiency and reliability.

Busbar, as a key component in electric vehicle power transmission system, has been widely used and emphasized for its high efficiency, reliability and thermal management performance. With the continuous progress of electric vehicle technology, Busbar technology is also developing and innovating. In the future, Busbar will play a more important role in the electric vehicle industry and contribute to the goal of sustainable transportation and green energy development.
