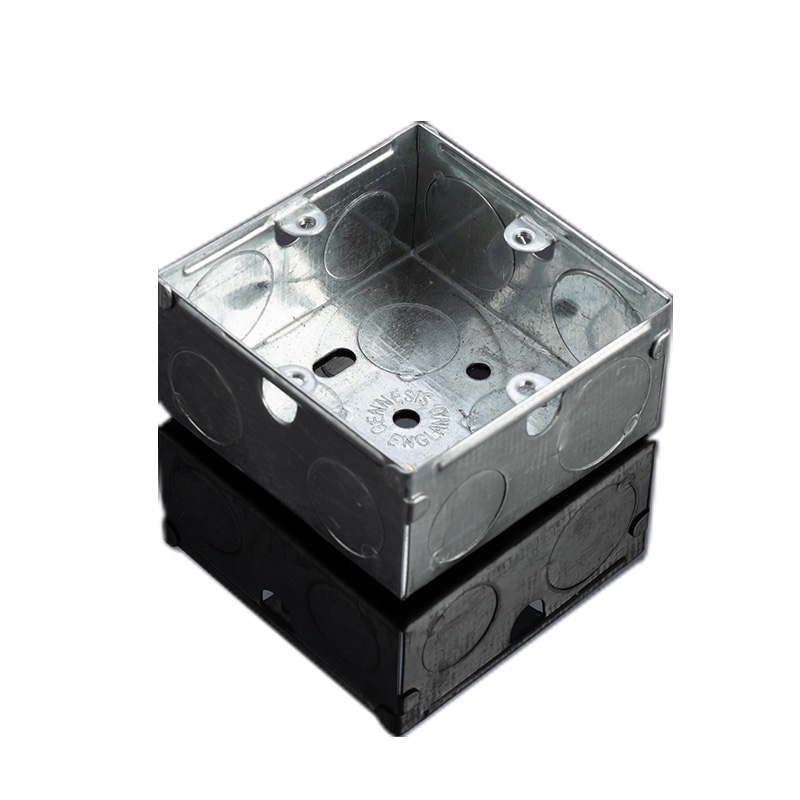

Junction Box

Junction Box, often referred to as Junction Box, is a widely used device in the field of electrical engineering, which is mainly used for the connection and distribution of wires or cables. It is available in various types, including plug type, general type, waterproof type, explosion-proof type and splash-proof type, etc., to suit different working environments and needs. In the field of photovoltaic, solar PV module Junction Box is a key component in the PV system. It is usually installed at the center of the back of the PV module, and its main function is to concentrate the battery current and transmit it to the output of the panel. The Junction Box contains cables, diodes, fuses and connectors, etc. In addition to serving as a power transmission and protection device, it also helps to manage the PV system and improve efficiency and production.Junction Box is a device that groups the inputs, outputs, and other connection interfaces on the effects board into one place, making it more convenient to build an effects system and reducing the wear and tear of cables and interfaces to facilitate troubleshooting. Convenient for troubleshooting.

Product Characteristics

1. UV Resistance: Some of the junction boxes have been treated with UV resistance for long-term outdoor use, which can prevent the material from aging due to sunlight.

2. Temperature resistance: Junction boxes can withstand temperatures ranging from -40°C to +85°C in general, and -60°C to +150°C in special models.

3. Waterproof cover design: Rubber seals or silicone gaskets are used to ensure a tight fit of the cover to prevent moisture and dust from entering.

4. Screw fixing: Stainless steel screws or brass screws are used to prevent rust and increase service life. Common installation methods include external fixing and internal hidden mounting.

5. Pre-drilled design: Some of the junction boxes are provided with pre-drilled holes or perforated smooth sidewalls, making it easy for users to design cable access holes according to their needs.

Application Areas

1. Residential and commercial buildings: In the installation and maintenance of electrical wiring, junction boxes are standard electrical fittings, widely used in lighting systems, switch connections, socket wiring, etc. in buildings.

2. Industrial control systems: junction boxes are widely used in factory automation and electrical control cabinets to protect the electrical connections of industrial equipment and avoid wires from vibration or other mechanical damage that may affect production.

3. Outdoor lighting system: such as garden lights, street lights wiring protection, to prevent the junction point exposed to the elements, to ensure the normal operation of electrical equipment.

4. Solar photovoltaic system: In the wiring system of solar photovoltaic panels, the junction box ensures the waterproof and durability of the cable connection points.

5. Traffic Signal System: In road traffic facilities, signal lights, and electrical equipment connections, the junction box provides safe and reliable cable connection protection.

Product Certification

1.CE certification: Comply with European safety requirements for electrical products to ensure that the products are sold legally in the European market.

2.RoHS Certification: Complies with the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Directive, indicating that the product does not contain hazardous substances (such as lead, mercury, cadmium, etc.) during the manufacturing process.

3.UL Certification: Complies with the U.S. and Canadian safety standards for electrical products, applicable to the North American market.

4. ISO9001 Certification: The factory has passed the quality management system certification to ensure consistency and high quality in the product manufacturing process.

Installation Guide

1. Select installation location: According to the wire wiring requirements, select the appropriate junction box installation location to ensure that it is easy to maintain and repair.

2. Fix the junction box: Use stainless steel screws or expansion bolts to fix the junction box on the wall or other designated locations.

3. Prepare cables: Cut the cables to be connected to the appropriate length and strip the wires to ensure that the copper part of the wires are sufficiently exposed but do not affect the insulation.

4. Wiring operation: Introduce the cables through the inlet holes on the junction box and connect the wires using terminals or crimping devices to ensure that the contact is tight and not loose.

5. Sealing: Use the rubber ring or silicone gasket provided with the junction box to seal the inlet holes to avoid moisture or dust from entering the box.

6. Installation of cover: Check all the wiring is correct, cover the junction box cover and use screws to fix it.

Safety Tips

1. Disconnect the power: Before any wiring operation, make sure the power supply is disconnected to prevent the risk of electric shock.

2. Waterproofing: When installing outdoors or in a humid environment, make sure the seal is intact and check the sealing status of the junction box regularly.

3. Cable organization: Avoid crossing too many cables in the junction box, and make sure the wires are neatly arranged to reduce the risk of short circuit.

Maintenance and Care

1. Regular Inspection: It is recommended to check the sealing status of the junction box once every 6 months to ensure that no water or dust has entered.

2. Cleaning and Maintenance: If you find dust or moisture accumulating in the box, you should open the cover to clean it in time and check whether the cable connection is firm.

3. Aging detection: For the long-term use of the junction box, especially the plastic material, regularly check whether the shell cracks or aging phenomenon, if any damage should be replaced immediately.

Optional accessories

1. Terminal block: Used for parallel or branch connection of multiple wires to ensure stable wire connection.

2. Sealing ring: Enhance the waterproof performance of the terminal box, suitable for high humidity environment or outdoor installation.

3. Crimp plate: Provide additional cable fixing function to prevent cable pulling from damaging the junction point.

4. Mounting brackets: For special environments, different types of mounting brackets are provided, suitable for different installation needs such as ceiling, wall and floor.

FAQ

What is a Junction Box used for?

A Junction Box is used to house and protect electrical connections, safeguarding them from environmental factors like moisture and dust, and preventing accidental contact with live wires.

What materials are commonly used for Junction Boxes?

Junction Boxes are typically made from materials such as ABS plastic, polycarbonate (PC), aluminum alloy, and stainless steel, each chosen based on the required durability, temperature resistance, and environmental exposure.

What does the IP rating of a Junction Box signify?

The IP (Ingress Protection) rating indicates the degree of protection a Junction Box offers against solid objects and liquids. For example, an IP65 rating means it's protected from dust and low-pressure water jets.

Can Junction Boxes be installed outdoors?

Yes, outdoor-rated Junction Boxes, typically with higher IP ratings such as IP66 or IP67, are designed to withstand harsh weather conditions, including rain, dust, and extreme temperatures.

What sizes are available for Junction Boxes?

Junction Boxes come in a wide range of sizes, from small (100mm x 100mm x 50mm) to large (200mm x 150mm x 80mm), with custom sizes available depending on specific requirements.

How are cables entered into a Junction Box?

Cables are typically inserted through pre-drilled cable entry holes, which may feature threaded, smooth, or rubber-sealed interfaces to secure and protect the cables.

What is the voltage tolerance of a typical Junction Box?

Junction Boxes are designed to handle various voltage levels, with many able to withstand up to 750V, depending on the model and material.

Are Junction Boxes fire-resistant?

Many Junction Boxes are designed to be fire-resistant, particularly those made from materials like polycarbonate (PC) and metal alloys, which can withstand high temperatures.

What installation methods are available for Junction Boxes?

Junction Boxes can be installed using different methods, including wall-mounted, embedded, or ground installation, depending on the application and environment.

Can Junction Boxes be customized in color and design?

Yes, many manufacturers offer custom color options (gray, black, white, etc.) and custom designs to meet specific installation needs, especially for industrial or aesthetic applications.
