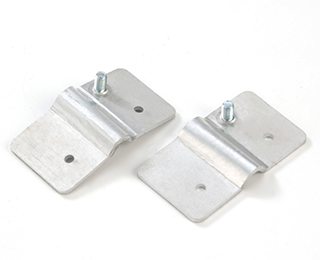

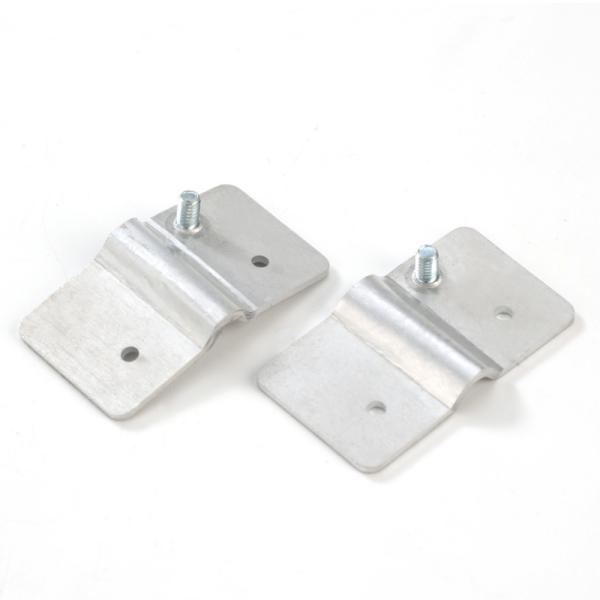

Aluminum Busbar

An Aluminum Busbar is a highly efficient and cost-effective electrical conductor used in power distribution systems. It serves as a key component in various industries due to its excellent electrical conductivity, lightweight nature, and corrosion resistance. Aluminum Busbars are widely used in electrical panels, transformers, switchgear, and renewable energy installations, making them a versatile choice for both high and low voltage applications.

Key Features:

1. Material:

• High-Grade Aluminum Alloy: Typically made from 6061 or 6101 aluminum alloy, which ensures high electrical conductivity and excellent mechanical strength. Aluminum busbars are anodized or coated to enhance corrosion resistance and long-term durability.

2. Lightweight:

• Lower Density: Aluminum busbars are about 30% lighter than their copper counterparts, making them easier to transport, handle, and install. This reduction in weight also helps to reduce the load on supporting structures and transportation costs.

3. Electrical Conductivity:

• High Conductivity: Though slightly less conductive than copper, aluminum busbars provide sufficient electrical conductivity for most applications while offering cost savings due to the material’s lower cost.

4. Corrosion Resistance:

• Natural Oxidation Layer: Aluminum naturally forms an oxide layer that protects it from corrosion in most environments, ensuring a longer service life, especially in outdoor or harsh industrial environments.

5. Thermal Efficiency:

• Excellent Heat Dissipation: Aluminum’s high thermal conductivity helps dissipate heat more effectively than other materials, ensuring the busbar remains cool under high load conditions and enhancing safety and performance.

6. Cost-Effective:

• Lower Material Costs: Aluminum is more affordable than copper, offering significant cost savings, especially for large-scale power distribution systems where extensive lengths of busbar are required.

Specifications:

• Thickness: 3mm – 20mm (customizable based on specific power requirements)

• Width: 20mm – 200mm (adjustable according to current capacity and application)

• Length: Standard lengths are 2m, 3m, or 6m, with custom lengths available upon request

• Surface Finish: Mill finish, anodized, or powder-coated to increase corrosion resistance

• Current Rating: Can carry high current capacities ranging from 100A to over 4000A, depending on the application

• Voltage Tolerance: Suitable for low, medium, and high voltage systems

Applications:

1. Power Distribution Systems:

• Aluminum busbars are used extensively in switchgear, distribution boards, and panel boards, where they connect high-voltage equipment, ensuring the efficient transmission of electricity between power sources and end users.

2. Transformers:

• As a critical part of transformer windings and power distribution inside transformers, aluminum busbars help to distribute current effectively while reducing overall system weight.

3. Renewable Energy Systems:

• Solar and wind energy plants often use aluminum busbars to connect solar panels or wind turbines to power inverters and energy storage systems, offering an efficient and cost-effective solution for large-scale power transmission.

4. Electrical Switchboards and Control Panels:

• Aluminum busbars provide a reliable means of connecting electrical components in industrial control panels and switchboards, ensuring smooth and consistent power flow within industrial machinery and automation systems.

5. Battery Connections:

• In electric vehicles (EVs) and battery storage systems, aluminum busbars are used to connect battery cells due to their lightweight nature and ability to handle high current loads efficiently.

Advantages of Aluminum Busbars:

• Weight and Installation: Due to their lighter weight, aluminum busbars are easier and quicker to install, reducing labor and material handling costs.

• Reduced System Costs: The lower cost of aluminum, combined with its good performance characteristics, leads to significant savings in both materials and production, particularly in large projects.

• Environmental Impact: Aluminum is highly recyclable, which contributes to sustainability and the reduced environmental impact of using aluminum busbars.

• Flexibility: Aluminum is easier to cut, bend, and shape compared to copper, which makes it more versatile in complex installations.

Customization Options:

• Shape: Available in various shapes such as flat, U-shaped, L-shaped, and T-shaped configurations to meet specific design requirements.

• Coatings: Custom coatings like PVC insulation, epoxy powder coating, or anodized finishing can be applied to enhance electrical insulation and protect against harsh environmental conditions.

• Drilling and Machining: Aluminum busbars can be drilled, tapped, or machined according to client specifications for easy integration into complex systems.

FAQ

What is Aluminum Busbar?

Aluminum busbar is an electrically conductive device used in power distribution systems, mainly for connecting electrical equipment and transmitting electrical energy, and is widely used because of its light weight, good conductivity, and high corrosion resistance.

What are the main materials of aluminum busbar?

Aluminum bus bars are usually made of 6061 or 6101 aluminum alloys, which provide high electrical conductivity and excellent mechanical strength, as well as good corrosion resistance.

What are the main advantages of aluminum bus bars?

The main advantages of aluminum busbars include light weight, excellent electrical conductivity, corrosion resistance, good thermal management capabilities, and cost effectiveness.

What applications are aluminum busbars suitable for?

Aluminum busbars are used in a wide range of applications such as power distribution systems, transformers, switchgear, electrical control panels, renewable energy systems and many more.

What are the advantages and disadvantages of aluminum busbars compared to copper busbars?

Aluminum busbars are lighter in weight and lower in cost compared to copper busbars, but are slightly less conductive. However, the corrosion resistance and thermal conductivity of aluminum bus bars give them an advantage in specific applications.

What is the typical current capacity of aluminum bus bars?

The current capacity of an aluminum busbar can vary from 100A to over 4000A, depending on its size and design.

What are the installation options for aluminum bus bars?

Aluminum busbars can be wall-mounted, recessed or surface-mounted to accommodate different electrical configurations and environmental requirements.

How to ensure the safety of aluminum busbar?

The safety and durability of aluminum busbars can be effectively improved through proper design, regular maintenance and the use of suitable protective coatings such as anodized or powder coated.

Is aluminum busbar suitable for outdoor environments?

Yes, aluminum bus bars have good corrosion resistance and can be used in outdoor environments, especially in adverse weather conditions, to ensure the safety and stability of the power distribution system.

What is the recycling status of aluminum busbar?

Aluminum busbars are highly recyclable. Aluminum materials can be efficiently recycled, which is environmentally friendly and in line with the concept of sustainable development.
