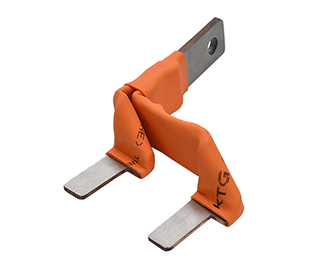

Battery Busbar

Battery Busbar is an important component that connects batteries or with the battery management system. It is usually made of copper and has excellent electrical and thermal conductivity. It plays a key role in battery assembly and battery management systems, capable of efficiently transmitting current and ensuring stable operation of the battery system. Battery Busbar design usually takes into account current load, heat dissipation and corrosion resistance to ensure efficient and safe transmission of electrical energy. Due to the different needs of the battery system, the Battery Busbar comes in a variety of shapes, sizes and connection methods and can be customized for specific applications. Battery Busbar plays a vital role in electric vehicles, energy storage systems and other battery applications and is a key component to ensure efficient operation and safety of battery systems.

Inquire Now

Battery Busbar is an essential component used for connecting battery cells in series or parallel to form battery packs. It is typically made of high-purity copper or aluminum, ensuring excellent electrical conductivity and thermal performance. Battery Busbars are widely used in electric vehicles (EVs), solar energy storage systems, UPS systems, and various industrial power applications. Designed to withstand high current loads, they offer exceptional corrosion resistance and mechanical strength, ensuring the stability and safety of the entire battery system.

Battery Busbar Manufacturing Process

Material Selection:

High-purity copper (C1100) or aluminum (6061, 1350) is chosen for superior electrical conductivity and durability.

Cutting and Stamping:

Precision CNC cutting and stamping techniques ensure accurate dimensions and consistent quality.

Surface Treatment:

Nickel-plating, tin-plating, or silver-plating enhances oxidation resistance and prolongs lifespan.

Bending and Forming:

Custom shapes and configurations are created based on specific battery module requirements.

Insulation Coating (Optional):

Epoxy coating or heat shrink tubing can be applied for additional insulation and safety.

Key Features & Benefits

High Conductivity:

Made from high-purity copper or aluminum to minimize resistance and energy loss.

Compact and Space-Saving Design:

Engineered to fit within limited battery pack spaces while ensuring optimal current distribution.

High Temperature and Corrosion Resistance:

Surface treatments such as nickel or tin plating improve oxidation resistance and extend service life.

Customizable Solutions:

Available in various sizes, shapes, and surface finishes to meet diverse battery module configurations.

Enhanced Safety and Durability:

Optimized design reduces overheating risks and ensures stable operation under high current loads.

Battery Busbar Specifications

Parameter	Details
Material	Copper (C1100) / Aluminum (6061, 1350)
Thickness	0.5mm - 10mm
Width	Customizable based on application
Surface Treatment	Nickel-plated, Tin-plated, Silver-plated
Current Rating	100A - 5000A (varies based on design)
Temperature Range	-40°C to 125°C
Application	EV battery packs, Energy storage systems, UPS systems

Application Areas

Electric Vehicles (EVs):

Ensures reliable electrical connections within high-voltage battery packs.

Energy Storage Systems (ESS):

Supports efficient power transmission for home and industrial energy storage applications.

UPS & Backup Power Systems:

Provides stable power connections for critical uninterruptible power supplies.

Portable Power Solutions:

Used in mobile battery packs and portable charging stations.

Frequently Asked Questions (FAQ)

Q: What is a Battery Busbar?

A: A Battery Busbar is a conductive metal strip that connects multiple battery cells to ensure efficient power transfer in battery packs.

Q: What materials are used to manufacture Battery Busbars?

A: They are primarily made from high-purity copper or aluminum, which provide excellent electrical conductivity and thermal management.

Q: What are the main benefits of using a Battery Busbar?

A: High electrical conductivity, compact design, corrosion resistance, and the ability to handle high current loads.

Q: Can Battery Busbars be customized?

A: Yes, they can be tailored in size, shape, thickness, and surface coating to fit specific battery pack designs.

Q: What is the current carrying capacity of a Battery Busbar?

A: Depending on the specifications, they can typically handle hundreds to thousands of amperes.

Q: Do Battery Busbars require maintenance?

A: Regular inspection for corrosion, loose connections, and cleanliness helps maintain performance and longevity.

Q: Are Battery Busbars certified for safety and quality?

A: Yes, most Battery Busbars comply with international certification standards such as ISO, CE, and UL.

Why Choose Our Battery Busbars?

High-Quality Materials: We use only premium-grade copper and aluminum for superior performance.

Precision Manufacturing: Advanced CNC machining ensures consistent quality and reliability.

Custom Solutions: Tailored busbar designs to match specific battery pack layouts.

Global Certifications: Products meet ISO, CE, and UL standards for safety and compliance.
