Battery Busbar Copper

1. What Is A Battery Busbar Copper?

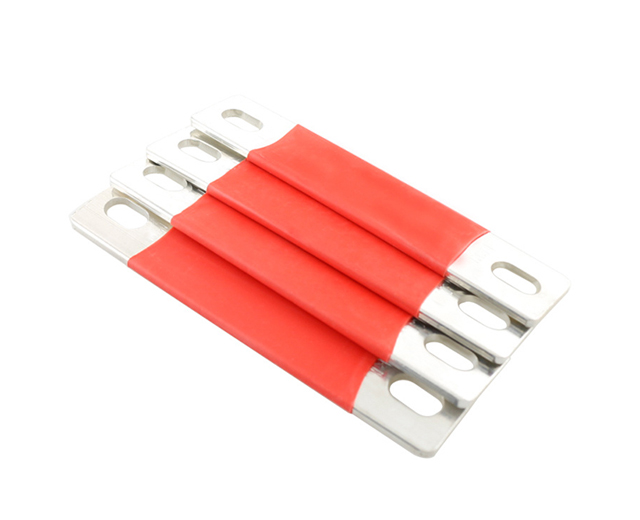

Battery Busbar Copper, also called Copper Busbar for Battery Pack, is a flat or shaped copper conductor used to connect battery cells and ensure high-efficiency current flow between them. These busbars are commonly applied in EV battery packs, energy storage systems (ESS), and lithium-ion battery modules.

A Battery Bus Bar Connections provides low-resistance, high-current connections and plays a critical role in battery performance, thermal management, and safety. They are often tin-plated or silver-plated and come in custom lengths, shapes, and punching patterns to match specific battery configurations.

2. How To Make a Battery Busbar Copper

The manufacturing of battery Copper Busbars involves advanced processing to ensure electrical reliability and mechanical compatibility:

• Material Selection: Use of C11000, T2, or OFC (Oxygen-Free Copper) with ≥99.9% purity.

• Cutting and Shaping: High-precision CNC machines cut the copper into the required size, thickness, and shape.

• Punching/Drilling: Mounting holes, slots, or tabs are added for exact alignment with battery terminals.

• Plating Treatment: Tin plating improves corrosion resistance and solderability; silver plating is used for critical conductivity applications.

• Insulation Coating (Optional): PVC, PE, or heat-shrink sleeves can be added to provide electrical insulation.

• Laser Marking/Labeling: Optional for traceability and identification.

3. Battery Busbar Copper Is Used In Application Fields

Battery busbar copper is a key component across a range of industries that depend on modular battery systems. Typical applications include:

• EV Battery Busbar Modules (Cylindrical, Prismatic, Pouch Cells)

• Lithium-ion Battery Packs

• Energy Storage Systems (ESS)

• Battery Management Systems (BMS)

• Solar Inverter Battery Packs

• Powerwall and Residential Battery Units

• Electric Scooters, Bikes, and Forklifts

• Telecom and UPS Backup Battery Cabinets

• Battery Racks for Industrial Use

4. The Characteristics Of Battery Busbar Copper

Battery copper busbars are engineered for performance, precision, and reliability. Key characteristics include:

• High Electrical Conductivity (≥99.9% pure copper)

• Excellent Thermal Performance

• Low Contact Resistance

• Custom Punching and CNC Machining

• Anti-Corrosion Plating (Tin/Silver)

• Optional Insulation Coating

• Stable Mechanical Strength

• RoHS and UL Compliance

5. How To Design The Battery Busbar Copper

When designing a Battery Bus Bar Connections, several technical factors must be considered:

• Current Load: Calculate max current per connection; adjust copper thickness and width accordingly.

• Voltage & Insulation: Determine if insulation or spacing is needed between adjacent busbars.

• Cell Layout: Design the busbar shape to match the terminal placement (e.g., tab alignment in prismatic cells).

• Plating Choice: Tin plating for standard applications; silver plating for ultra-low resistance needs.

• Thermal Rise: Ensure sufficient surface area for heat dissipation or add thermal pads if required.

6. How To Install Battery Busbar Copper

Battery copper busbars are typically installed during module assembly using these steps:

• Align Punching Holes with cell tabs or terminals.

• Secure Busbars using screws, rivets, or laser welding.

• Check for Clearance between positive and negative busbars to avoid shorts.

• Apply Insulation if required using sleeves or covers.

• Verify Contact Resistance after tightening.

Installation must be precise, as poor busbar alignment or loose contact can cause thermal damage or power loss.

7. Why To Choose The G and N Fortune Limited Battery Busbar Copper

G and N Fortune Limited offers end-to-end copper busbar solutions for battery packs. Why do leading manufacturers choose us?

• OEM & ODM Support – Full customization of size, shape, plating, holes, and insulation.

• High Purity Copper – T2, C11000, OFC materials with ≥99.9% conductivity.

• Advanced CNC & Laser Equipment – Ensures precision and fast prototyping.

• Diverse Applications – From EVs and ESS to telecom and solar battery systems.

• Quick Turnaround & Global Delivery – Fast shipping for both prototypes and bulk orders.

• RoHS, CE & UL Certified – International quality compliance for peace of mind.

Battery Copper Busbar – Typical Specifications
