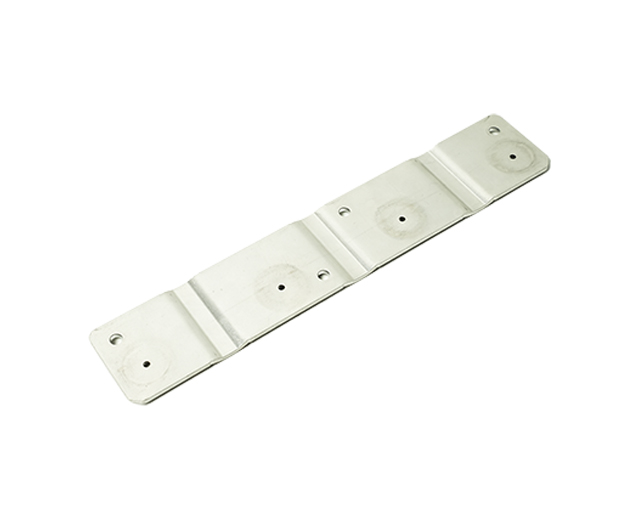

Bus Bar Aluminum

Bus bar aluminum (bus bar aluminium / aluminium bus bars) is a type of electrical conductor made from high-quality aluminum alloy, designed for efficient power distribution in electrical systems. It is widely used as a lightweight and cost-effective alternative to copper busbars in industrial, renewable energy, and power infrastructure applications.

An Aluminum Bus Bar provides a reliable path for current transmission while reducing system weight and overall installation cost.

Aluminum Bus Bar Material and Alloy Types

The performance of an aluminum busbar depends heavily on its aluminum busbar material and alloy selection.

6101 Aluminum Bus Bar

The 6101 aluminum bus bar is one of the most widely used alloys for electrical applications.

• Excellent electrical conductivity

• High mechanical strength

• Ideal for power transmission systems

• Common in high-current busbar systems

6101 T61 Aluminum Bus Bar

The 6101 T61 aluminum bus bar offers improved strength and stability through heat treatment.

• Better mechanical performance

• Stable conductivity

• Suitable for heavy-duty electrical systems

6061 Aluminum Bus Bar

The 6061 aluminum bus bar is known for its structural strength.

• High corrosion resistance

• Good machinability

• Suitable for structural and industrial busbar systems

Aluminum Bus Bar Alloy

Common aluminum bus bar alloy materials include 6101 and 6061, balancing conductivity, strength, and cost efficiency.

Types of Aluminum Bus Bars

Standard Aluminum Bus Bar

A basic rigid aluminum bus used in electrical panels and distribution systems.

Aluminium Tubular Busbar

An aluminium tubular busbar features a hollow structure:

• Lightweight design

• Improved heat dissipation

• Reduced material usage

• Suitable for high-current applications

Tin Plated Aluminum Bus Bar

A tin plated aluminum bus bar improves performance and durability:

• Better corrosion resistance

• Lower contact resistance

• Improved electrical connection reliability

Copper Clad Aluminium Busbar

A copper clad aluminium busbar combines two materials:

• Aluminum core (lightweight)

• Copper outer layer (high conductivity)

Advantages:

• Lower cost than pure copper busbars

• Improved conductivity compared to aluminum

• Widely used in hybrid power systems

Aluminum Bus Bar vs Copper Bus Bar

Understanding aluminum bus bar vs copper helps in selecting the right solution:

In many industrial applications, bus bar aluminium is preferred for its cost and weight advantages.

Aluminum Bus Bar Specification

A typical aluminium bus bar specification includes:

• Material grade (6101, 6061, etc.)

• Cross-sectional size (width × thickness)

• Current carrying capacity

• Surface treatment (bare, tin plated, copper clad)

• Operating temperature range

• Mechanical strength requirements

• Insulation or mounting design

Custom specifications are often provided by aluminum bus bar manufacturers based on project requirements.

Copper to Aluminum Bus Bar Connections

Proper copper to aluminum bus bar connections are critical in hybrid systems.

Key considerations include:

• Use of bi-metal transition plates

• Anti-oxidation treatment

• Proper torque control in bolted joints

• Use of conductive grease or coating

• Prevention of galvanic corrosion

These methods ensure stable and safe electrical performance in mixed-material systems.

Advantages of Aluminum Bus Bars

1. Lightweight Design

Aluminum is significantly lighter than copper, making installation easier.

2. Cost Efficiency

The aluminium busbar price is much lower than copper alternatives.

3. Good Conductivity-to-Weight Ratio

With proper sizing, aluminum can efficiently handle high current loads.

4. Easy Fabrication

Aluminum is easy to cut, drill, and machine into custom shapes.

5. Corrosion Resistance

With tin plating or surface treatment, durability is greatly improved.

Aluminum Bus Bar Manufacturer and Suppliers

Choosing a reliable aluminium busbar manufacturer is essential for performance and safety.

Professional aluminium busbar suppliers and aluminum bus bar manufacturers typically provide:

• Custom busbar design and engineering

• CNC machining and fabrication

• Surface treatment options (tin plated, copper clad)

• OEM/ODM production services

• Electrical testing and quality inspection

Aluminum Bus Bar Price Factors

The aluminium busbar price depends on:

• Alloy type (6101, 6061, etc.)

• Size and thickness

• Surface treatment (tin plated, copper clad)

• Order quantity

• Processing complexity

• Market aluminum material cost

Generally, aluminum busbars offer a more economical solution than copper busbars, especially for large-scale installations.

Applications of Aluminum Bus Bars

Aluminum bus bars are widely used in:

• Power distribution systems

• Electrical switchgear

• Substations and transformers

• Renewable energy systems (solar & wind)

• Industrial automation equipment

• Rail transportation systems

• Data centers and UPS systems

Bus bar aluminum (aluminum bus bar) is a lightweight, cost-effective, and reliable solution for modern electrical power distribution systems. With options like 6101 aluminum bus bar, 6061 aluminum bus bar, tin plated aluminum bus bar, and copper clad aluminium busbar, it can meet the requirements of different industrial applications.

By working with professional aluminum bus bar manufacturers and selecting the right aluminum bus bar alloy, users can achieve optimal performance, safety, and cost efficiency in power transmission systems.

FAQ – Bus Bar Aluminum

1. What is bus bar aluminum?

Bus bar aluminum (bus bar aluminium / aluminum bus bar) is an electrical conductor made from aluminum alloy, used to distribute and transmit electrical current in power systems. It is widely used as a lightweight and cost-effective alternative to copper busbars in industrial and energy applications.

2. What are the uses of aluminum bus bars?

Aluminum bus bars are used in:

• Power distribution systems

• Electrical switchgear and panels

• Substations and transformers

• Solar and wind power systems

• Industrial automation equipment

• Rail and transportation systems

They are ideal for large-scale, high-current applications.

3. What is the difference between aluminum bus bar vs copper?

The main differences are:

• Aluminum bus bar: lighter, cheaper, larger size required

• Copper bus bar: higher conductivity, more compact, higher cost

Aluminum is preferred for cost-sensitive and large installations, while copper is used for compact high-performance systems.

4. What materials are used for aluminum bus bars?

Common aluminum busbar material options include:

• 6101 aluminum bus bar (high conductivity)

• 6101 T61 aluminum bus bar (high strength version)

• 6061 aluminum bus bar (structural strength)

• Aluminum bus bar alloy (general category)

5. What is a copper clad aluminium busbar?

A copper clad aluminium busbar combines:

• Aluminum core (lightweight)

• Copper outer layer (high conductivity)

It provides a balance between cost, weight, and electrical performance.

6. What is a tin plated aluminum bus bar?

A tin plated aluminum bus bar is aluminum coated with tin to:

• Improve corrosion resistance

• Reduce contact resistance

• Enhance electrical connection stability

7. What is aluminum tubular busbar?

An aluminium tubular busbar is a hollow aluminum conductor designed for:

• Better heat dissipation

• Reduced material usage

• Lightweight high-current applications

8. What is the aluminum bus bar specification?

Typical aluminium bus bar specification includes:

• Alloy grade (6101, 6061, etc.)

• Size (width, thickness, or diameter)

• Current rating

• Surface treatment (bare, tin plated, copper clad)

• Installation and mounting method
