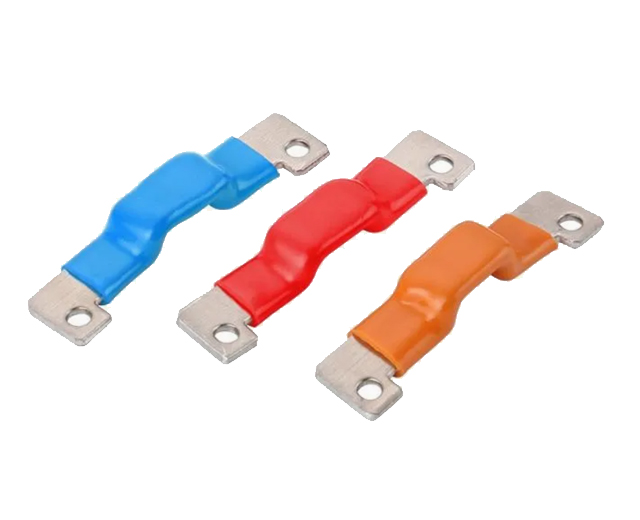

Bus Bar Connector

What is a Bus Bar Connector?

A bus bar connector is a critical component in electrical systems designed to join multiple bus bars or connect bus bars to other devices safely and efficiently. It ensures stable power distribution, minimizes energy loss, and provides a reliable pathway for electrical current. Common types include connector bus bar, electrical bus bar connector, copper bus bar connector, and battery bus bar connector. These connectors are widely used in automotive, industrial, solar, marine, and battery applications, making electrical connections safer, more organized, and highly efficient.

How is a Bus Bar Connector Made? (Production Steps & Principle)

The manufacturing of a bus bar connector follows precision engineering to guarantee performance, durability, and safety:

1. Material Selection: High-conductivity copper or flexible braided copper is typically chosen for superior current-carrying capacity. Aluminum variants are also available for lightweight applications.

2. Cutting & Shaping: Copper sheets or braided copper are precisely cut and shaped using stamping, CNC machining, or laser cutting to form copper bus bar connectors or flexible braided copper busbar connectors.

3. Drilling & Punching: Holes or slots are created for secure mounting and connection to bus bars or devices.

4. Surface Treatment: Connectors are electroplated with tin, nickel, or silver to prevent oxidation and maintain long-term conductivity.

5. Assembly & Testing: Components are assembled into modular bus bar type connectors, and each unit undergoes rigorous testing for current capacity, mechanical strength, and electrical reliability.

Advantages & Features

Our bus bar connectors provide significant advantages over traditional electrical connections:

• High Conductivity: Copper and flexible braided designs ensure minimal resistance and efficient power transfer.

• Flexible & Modular: Supports busbar flexible connectors for vibration-prone or dynamic systems.

• Durable & Corrosion-Resistant: Electroplated surfaces prevent oxidation and extend service life.

• Versatile Applications: Suitable for bus bar connector 12v, battery systems, electrical panels, and power distribution.

• Customizable: We offer custom bus bar connector solutions for specialized setups.

• Low Maintenance: Robust design reduces the need for frequent inspections or replacements.

Compared to other bus bar connector suppliers, our products combine high performance, flexibility, and durability, making them ideal for critical electrical systems.

Materials & Specifications

Applications

Our electrical bus bar connectors are widely applied in:

• Automotive Systems: Battery connections, fuse panels, and power distribution.

• Industrial & Electrical Panels: Safe and reliable bus bar connections.

• Solar & Renewable Energy Systems: DC power distribution networks.

• Marine & RV Applications: Vibration-resistant electrical connections.

• Battery Management Systems: Including battery busbar connectors for modular battery packs.

Installation & Maintenance Tips

• Ensure the connector size matches the bus bar for secure contact.

• Use proper torque when fastening bolts to avoid damage.

• For flexible braided copper busbar connectors, ensure braids are properly aligned without twisting.

• Periodically inspect for loose connections or signs of corrosion.

• Avoid bending or overstressing flexible connectors to maintain long-term reliability.

Why Choose Us?

As a trusted bus bar connector manufacturer and bus bar connector supplier, we provide:

• Custom Solutions: Tailored copper bus bar connectors and flexible connectors for specialized requirements.

• Premium Materials: High-conductivity copper, flexible braided copper, or aluminum for superior performance.

• Advanced Production: CNC machining, stamping, and precise plating for durability.

• Competitive Wholesale Pricing: Ideal for bulk purchases from bus bar connector wholesale suppliers.

• Expert Support: Guidance on sizing, installation, and maintenance.

Compared to other bus bar connector manufacturers, we focus on both safety and performance, delivering connectors that meet or exceed industry standards.

FAQ

Q1: What is the difference between a solid bus bar connector and a flexible braided connector?
A: Solid connectors provide high stability for fixed connections, while flexible braided connectors reduce vibration stress and allow slight movement between bus bars.

Q2: Can bus bar connectors handle high current?
A: Yes, depending on material, thickness, and width, our copper bus bar connectors can handle up to 1000A safely.

Q3: Are custom bus bar connectors available?
A: Yes, we provide custom bus bar connector solutions for unique dimensions, shapes, or current requirements.

Q4: How do I maintain my bus bar connectors?
A: Inspect periodically for corrosion, ensure tight connections, and avoid overstressing flexible braids.

Q5: Are these connectors suitable for 12V systems?
A: Yes, our bus bar connector 12v products are specifically designed for automotive, battery, and low-voltage DC applications.
