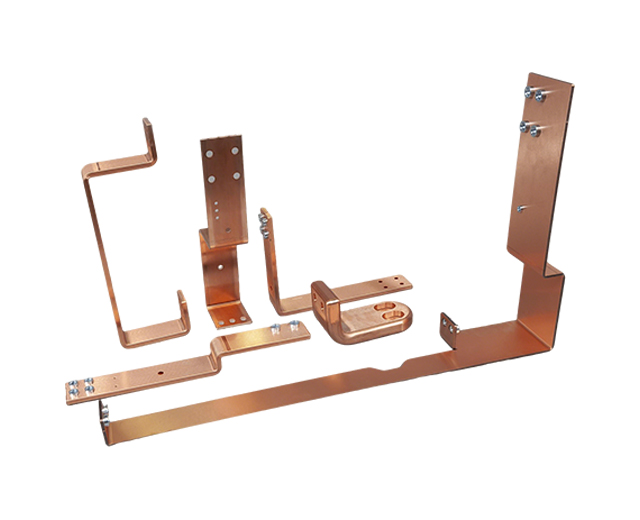

Bus Bar Electric

What Is Bus Bar Electric?

A bus bar electric—also known as busbar, electrical bus bar, or busbar electrical system—is a highly conductive metal bar used to distribute electricity safely and efficiently within power distribution units, switchgear, electrical panels, and industrial equipment. In simple terms, a bus bar in electrical systems acts as the “highway” that transfers large currents between incoming and outgoing circuits.

Common variations include:

• Copper Bus Bar for high conductivity

• Insulated busbar for enhanced safety

• Grounding busbar for stable earthing

• Power bus bar for heavy-duty power transmission

• Electrical panel bus bar for distribution boxes and control panels

Busbars are essential components in every modern electrical busbar system, ensuring stable current flow with minimal power loss.

How Busbars Are Made (Manufacturing Process & Principles)

As a professional busbar manufacturer, our busbar manufacturing process follows strict electrical and mechanical requirements to guarantee reliability.

1. Raw Material Selection

• High-purity copper or aluminum billets are selected.

• Material properties are tested for conductivity, hardness, and tensile strength.

2. Cutting & Shaping

• Precision cutting ensures accurate length.

• Bending, punching, and slotting are performed using CNC equipment.

3. CNC Machined Copper Busbar

For high-precision applications, we use CNC machined copper busbar technology, ensuring:

• Tight tolerances

• Smooth edges

• Accurate hole positions

• Consistent bending angle

4. Surface Treatment

Depending on customer requirements:

• Tin-plating

• Nickel-plating

• Silver-plating

• Epoxy powder coating for insulated busbar

5. Custom Bus Bar Fabrication

We provide complete custom electrical bus bar and custom bus bar fabrication services:

• Shape customization

• Current rating customization

• Insulation & coating customization

• Logo + part number customization

6. Quality Testing

• Conductivity test

• Current-load test

• Insulation resistance test

• Thickness & surface finish test

Advantages of Our Electrical Bus Bar

Compared with other copper busbar suppliers, we offer several unique advantages:

1. Higher Conductivity & Lower Power Loss

Our copper bus bar is made from 99.9% C1100 copper, reducing energy loss across the busbar electrical system.

2. Premium Surface Finish

High-grade plating protects the power bus bar from oxidation and corrosion.

3. Outstanding Mechanical Strength

Our busbars maintain stability even at high temperatures and high currents.

4. Fully Customized Solutions

As an experienced busbar manufacturer, we support:

• OEM/ODM

• Special sizes and shapes

• Large-scale busbar manufacturing

• Fast prototyping for custom electrical bus bar

5. Competitive Electrical Bus Bar Price

We control material supply chains and production costs to provide affordable yet high-quality electrical bus bar price options.

Material Options

You can choose from:

1. Copper Bus Bar

Highest conductivity
Best for heavy-current systems
Ideal for industrial and commercial projects
Available as copper bus bar for sale in bulk

2. Aluminum Bus Bar

Lightweight
Cost-effective
Good for distribution panels and renewable energy systems

Technical Specifications (Typical Parameters)

Custom specifications available upon request.

Application Scenarios

Our busbar electrical products are widely used in:

1. Electrical Panels

• Distribution boards

• Bus bar in electrical panel

• Control cabinets

2. Industrial Power Systems

• Transformers

• Switchgear

• Motor control centers

3. Renewable Energy

• Solar inverters

• Battery energy storage

• Wind power equipment

4. Data Centers

• UPS systems

• Power distribution units

5. Automotive & EV Applications

• Charging stations

• EV battery packs

• High-current connections

Installation & Maintenance Guidelines

Installation

• Ensure busbar alignment is accurate to avoid stress.

• Maintain proper torque when tightening bolts.

• Use insulated sleeves or barriers for insulated busbar solutions.

• Ensure grounding with a reliable grounding busbar.

Maintenance

• Inspect for oxidation or discoloration.

• Check bolt tightness periodicially.

• Clean terminals to maintain low resistance.

• Avoid moisture accumulation around the electrical busbar system.

Why Choose Us as Your Busbar Manufacturer?

1. Full-Range Customization

We specialize in custom electrical bus bar and precision custom bus bar fabrication with fast delivery.

2. Advanced Production Equipment

• CNC bending machines

• High-precision punching machines

• Automated plating lines

3. High Conductivity Materials

Our copper meets international copper purity standards, ensuring lower temperature rise and better reliability.

4. Strict Quality Control

Every bus bar electric product undergoes full testing before shipment.

5. Global Export Experience

We serve clients in Europe, the US, Australia, Southeast Asia, and the Middle East.

FAQ

Q1: Can you customize the size and shape of the copper bus bar?

Yes. We offer full custom bus bar fabrication for all industries.

Q2: What is your typical electrical bus bar price?

Price depends on copper market price, size, plating, and order quantity. Contact us for a quotation.

Q3: Do you offer insulated busbar solutions?

Yes, including epoxy coating, heat-shrink insulation, and PVC wrapping.

Q4: Are you a manufacturer or trading company?

We are a direct busbar manufacturer, providing competitive pricing and fast delivery.

Q5: Can you provide CNC machined copper busbar for precision equipment?

Absolutely. Our CNC center supports high-precision machining with tight tolerances.
