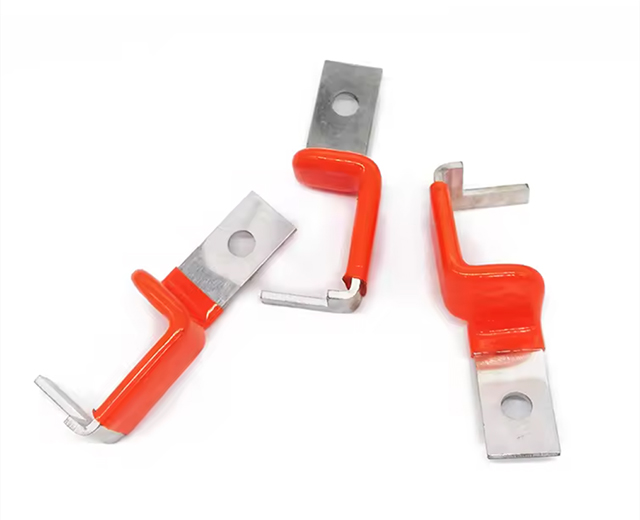

Bus Bar in Electrical Panel

A bus bar in electrical panel is a crucial component in modern power distribution systems, ensuring safe, reliable, and efficient electricity flow. Electrical panel busbars provide a central point for connecting multiple circuits, reducing wiring complexity, and maintaining low resistance for high-current applications.

Whether in industrial switchgear, commercial buildings, or renewable energy systems, a properly designed panel busbar system ensures smooth operation and long-term stability.

What Is a Busbar in Electrical Panel?

When asked what is a busbar in electrical panel, it refers to a metallic conductor that distributes electrical power within the panel. It connects incoming and outgoing circuits, allowing multiple electrical devices to share a common power source.

A busbar in electrical panel ensures:

• Uniform power distribution

• High current-carrying capacity

• Reduced voltage drop

• Easy installation and maintenance

• Improved safety and reliability

Material Options: Copper, Aluminum & Tinned Copper

1. Copper Busbar

A Copper Busbar is widely used in panels for its excellent electrical conductivity, durability, and heat dissipation. It is ideal for:

• Industrial switchgear panels

• Battery panels

• High-current distribution panels

2. Aluminum Busbar

An aluminum busbar is lightweight, cost-effective, and suitable for:

• Commercial distribution panels

• Renewable energy applications

• Large electrical infrastructure projects

3. Tinned Copper Busbar

A tinned copper busbar features a protective tin coating, enhancing corrosion resistance. It is commonly applied in:

• Outdoor panels

• Marine electrical systems

• High-humidity environments

Types of Busbars in Electrical Panels

• Solid busbar – simple, strong, and reliable for most standard applications

• Flexible busbar – suitable for panels requiring vibration resistance

• Laminated busbar – reduces inductance, improves thermal management, and saves space

• Insulated busbar – enhances safety in high-voltage or exposed applications

Busbar Specifications & Parameters

A high-quality electrical panel busbar must meet precise specifications:

• Busbar thickness and width according to current rating

• Low voltage drop

• High mechanical strength

• Suitable for low, medium, or high voltage panels

• Proper insulation for safety compliance

Installation & Connection

Proper busbar mounting in panel is essential for performance and safety. Key considerations include:

• Secure busbar clamps

• Proper terminal connections

• Correct spacing between layers

• Insulation for high-voltage systems

• Easy accessibility for maintenance

Applications of Bus Bar in Electrical Panels

• Distribution panels in commercial and residential buildings

• Industrial switchgear panels

• Battery and energy storage panels

• Renewable energy systems such as solar and wind inverters

• UPS and data center panels

Why Choose Us as Your Busbar Panel Supplier?

As a trusted busbar panel manufacturer, we offer:

• Full range of copper busbar, aluminum busbar, and tinned copper busbar

• Custom solutions through our custom busbar panel factory

• High-quality laminated busbars for advanced applications

• Reliable busbar wholesale support for bulk projects

Our panels meet global standards, ensuring long-term reliability and safe electrical distribution.

Bus Bar in Electrical Panel – FAQ

1. What is a bus bar in an electrical panel?

A bus bar in an electrical panel is a metallic conductor that distributes electrical power to multiple circuits within the panel. It reduces wiring complexity, ensures uniform current distribution, and supports high-current applications efficiently.

2. What materials are used for panel busbars?

Common materials include:

• Copper busbar – excellent conductivity and durability

• Aluminum busbar – lightweight and cost-effective

• Tinned copper busbar – corrosion-resistant for outdoor or high-humidity environments

3. What types of busbars are available for electrical panels?

• Solid busbar – simple and robust for standard applications

• Flexible busbar – resistant to vibrations and thermal expansion

• Laminated busbar – low inductance, high current density, compact design

• Insulated busbar – enhanced safety for high-voltage panels

4. How do I choose the right bus bar for my panel?

Consider:

• Current rating and panel voltage

• Space and layout constraints

• Environmental conditions (temperature, humidity, corrosion)

• Application type (industrial, commercial, renewable energy, battery systems)

5. Can busbars be customized?

Yes. As a professional custom busbar factory, we offer tailored solutions in terms of:

• Dimensions and thickness

• Material selection (copper, aluminum, tinned copper)

• Laminated or flexible structures

• Pre-drilled or bent designs for specific panel layouts

6. What is the difference between copper and aluminum busbars?

• Copper busbar: Higher conductivity, better thermal performance, suitable for high-current panels

• Aluminum busbar: Lightweight, cost-effective, easier to shape, suitable for larger panels

7. What are battery busbars?

Battery busbars connect individual battery cells in energy storage systems or EV battery packs, providing low-resistance pathways for high currents. They can be made from copper, aluminum, or laminated structures depending on the application.

8. How should busbars be installed in electrical panels?

Key steps include:

• Securely mounting busbars using clamps or supports

• Properly connecting terminals and joints

• Maintaining correct spacing between layers

• Ensuring insulation for high-voltage systems

• Allowing access for maintenance and inspection

9. Where are bus bars in electrical panels commonly used?

• Distribution panels in commercial and residential buildings

• Industrial switchgear

• UPS and data center panels

• Renewable energy panels (solar, wind)

• EV battery and energy storage panels

10. Can you supply busbars in bulk?

Yes. We provide busbar wholesale solutions for large projects, including standard copper, aluminum, and tinned copper busbars, as well as customized laminated busbars for specific applications.
