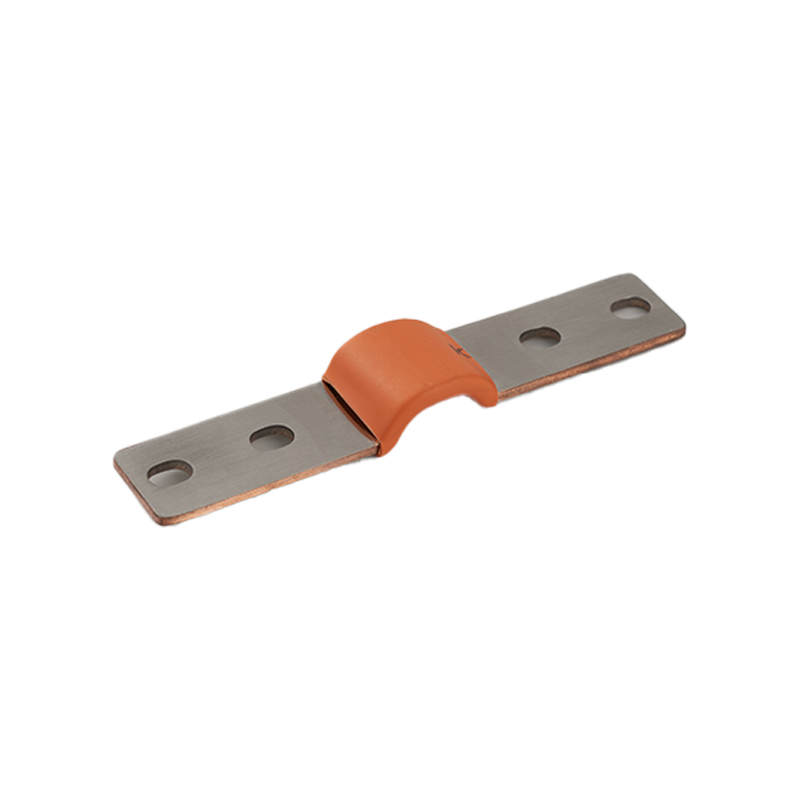

Copper Laminated Flexible Bus Bar

Copper Laminated Flexible Bus Bar is a state-of-the-art electrical connection element that combines conductivity, insulation and flexibility. It is made of high-quality copper laminated with insulating material, which not only has excellent conductive properties, but also has excellent flexibility and insulating properties. The design of this busbar allows it to easily cope with a variety of complex circuit layout requirements. Its unique bendability makes it possible to achieve efficient electrical connections in a limited space, greatly simplifying the installation and maintenance of the circuit. At the same time, its high-quality insulating material ensures electrical safety, effectively preventing safety accidents caused by short circuits or leakage.Copper Laminated Flexible Bus Bar also has good corrosion and abrasion resistance, and is able to maintain stable performance in harsh working environments. This makes it widely used in electric power, electronics, communications, aerospace and other fields, becoming an important and indispensable part of modern electrical systems.

• Structure:

• Layers: A laminated bus bar consists of multiple layers of thin copper sheets or foils, which are laminated together with an insulating material between each layer. This construction enhances flexibility and allows the bus bar to bend and twist without compromising its electrical performance.

• Insulation: The insulating layers prevent electrical short circuits between the copper layers, ensuring safe and reliable operation.

• Function:

• Flexibility: The laminated structure allows the bus bar to accommodate movement and vibrations within the system, making it ideal for applications where rigid bus bars would be impractical.

• Current Distribution: Like traditional bus bars, they distribute electrical current efficiently between different components of an electrical system.

• Advantages:

• Reduced Inductance: The laminated design helps to reduce the inductance, which can be beneficial in high-frequency applications, leading to improved performance and reduced electromagnetic interference (EMI).

• Enhanced Flexibility: Allows for easy installation in confined or complex spaces where traditional rigid bus bars cannot be used.

• Thermal Management: The construction aids in better heat dissipation, reducing the risk of overheating and improving the longevity of the electrical components.

• Applications:

• Electric Vehicles (EVs): Used in EV battery packs to connect cells and modules, offering the flexibility needed to fit within compact spaces and accommodate movement.

• Renewable Energy Systems: Applied in solar and wind energy systems for efficient power distribution and to handle the dynamic nature of these environments.

• Industrial Automation: Used in machinery and automation systems where flexibility and reliable power distribution are crucial.

• Manufacturing Considerations:

• Materials: High-purity copper is typically used for the conductive layers, while various insulating materials (such as polyester films or polyimide) are used between the copper layers.

• Precision: The lamination process requires precise control to ensure uniform thickness and proper alignment of the layers to maintain electrical and mechanical integrity.

• Installation:

• Custom Fitting: Can be custom-designed to fit specific applications, providing tailored solutions that meet exact specifications.

• Ease of Installation: Their flexibility can simplify the installation process, especially in complex or tight spaces, reducing the time and effort required compared to rigid bus bars.
