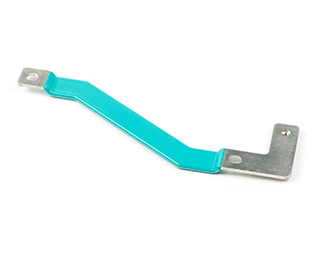

Electrical Copper Bus Bar

Electrical Copper Bus Bars are critical components used in electrical power distribution systems. They are designed to efficiently carry electrical currents and connect multiple circuits or components. Made from high-quality copper materials like T2 copper (or T1, TU1, and others), Electrical Copper Bus Bars are ideal for use in switchgear, substations, power panels, transformers, and other industrial applications. Known for their high electrical conductivity, corrosion resistance, and excellent performance, these bus bars ensure reliable and safe power transmission across various systems.

Product Features

1.Superior Conductivity: With conductivity greater than 100 IACS, Electrical Copper Bus Bars ensure optimal power transmission and minimal energy loss.
2.High-Quality Copper: Made from premium copper materials such as T2, T1, TU1, providing excellent electrical performance and mechanical strength.
3.Durable and Long-Lasting: Resistant to corrosion and wear, ensuring a long service life and minimal maintenance.
4.Customizable Sizes: Available in various thicknesses, widths, and lengths to meet specific design and application needs.
5.Versatile Plating Options: Offers plating choices like tin, nickel, or silver to enhance durability and resistance to oxidation.
6.Insulation Protection: Optional insulation treatments, including heat shrink tubing, PVC dipping, or epoxy coating, to ensure safety and prevent short circuits.
7.Precision Manufacturing: Electrical Copper Bus Bars are processed using advanced cutting, punching, bending, and drilling techniques to meet high standards of precision.
8.Certified Quality: Manufactured according to ISO9001 & IATF16949:2016 certification standards, ensuring consistent quality and reliability.

Manufacturing Process

Electrical Copper Bus Bars are produced using a combination of advanced manufacturing processes, ensuring the highest quality and performance:
1.Material Selection: High-purity copper is selected for its excellent conductivity and mechanical strength.
2.Cutting and Shaping: The copper material is cut to specified dimensions and shaped through punching, bending, and other methods.
3.Plating: Optional tin, nickel, or silver plating is applied to enhance the bus bar's durability and resistance to corrosion.
4.Insulation Application: Insulation coatings, including heat shrink tubing, PVC dip coating, or epoxy powder coating, are applied as needed to ensure electrical safety.
5.Precision Machining: Drilling, tapping, and CNC machining are used to create the necessary holes and features for connecting bus bars within electrical systems.
6.Quality Testing: Each bus bar undergoes thorough testing for conductivity, dimensional accuracy, and overall performance to ensure it meets rigorous standards.

Detailed Specifications

Application Fields

1.Power Distribution Systems: Used in substations, electrical panels, and switchgear for efficient power distribution and connection.
2.Industrial Machinery: Applied in factories, manufacturing plants, and machinery systems to connect electrical circuits.
3.Transformers and Generators: Essential in power generation systems to distribute energy effectively across components.
4.Electric Vehicles: Used in electric vehicle charging stations and power systems for efficient energy transfer.
5.Renewable Energy: Employed in solar power, wind energy, and other renewable energy systems to enhance energy efficiency and transmission.
