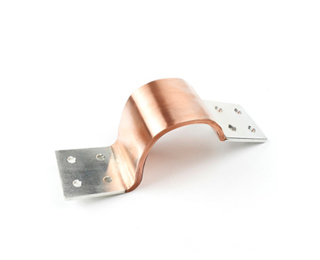

Nickel Plated Copper Busbar

What is Nickel Plated Copper Busbar?

A Nickel Plated Copper Busbar is a specialized electrical component made from copper that has been coated with a layer of nickel. The copper core provides excellent electrical conductivity, while the nickel plating enhances the busbar's durability and resistance to corrosion, oxidation, and wear. This combination of materials makes Nickel Plated Copper Busbars ideal for high-performance electrical systems, where both excellent conductivity and long-term reliability are required. They are widely used in applications where high current, low resistance, and resistance to environmental factors are critical.

How to Manufacture Nickel Plated Copper Busbar?

The production process for Nickel Plated Copper Busbars involves several precise steps to ensure both electrical performance and mechanical durability:

1.Material Selection: High-quality copper is selected as the base material for the busbar due to its excellent conductivity. The copper must be free from impurities that could affect its performance.

2.Shaping the Busbar: The copper is shaped into the desired dimensions, which could include flat, rectangular, or custom-shaped configurations based on the application’s requirements.

3.Nickel Plating: The shaped copper busbar undergoes a nickel plating process. The copper busbar is placed in a bath containing a nickel salt solution, and an electrical current is passed through the solution to deposit a thin, uniform layer of nickel onto the copper surface. This nickel coating provides several benefits, including enhanced corrosion resistance, better thermal conductivity, and increased mechanical strength.

4.Finishing and Inspection: After the plating process, the busbar is carefully finished to remove any imperfections and ensure the nickel coating is uniform. The final product undergoes rigorous inspection for thickness, adherence, and electrical properties. Testing is done for corrosion resistance, voltage withstand, and current-carrying capacity.

5.Cutting and Packaging: The Nickel Plated Copper Busbar is then cut to the required lengths, customized according to specific customer needs. It is packaged and prepared for shipment to various industries.

Characteristics

1.Excellent Electrical Conductivity: The copper core ensures that Nickel Plated Copper Busbars maintain low electrical resistance, allowing for efficient power distribution in high-current applications.

2.Corrosion and Oxidation Resistance: The nickel plating offers superior resistance to corrosion and oxidation, particularly in environments where the busbars are exposed to moisture, salt, or other harsh chemicals. This makes them ideal for outdoor and marine environments.

3.Durability and Wear Resistance: The nickel layer increases the mechanical strength of the busbar, enhancing its ability to resist physical wear, abrasion, and damage, even in demanding industrial applications.

4.Thermal Conductivity: Nickel plating also improves the thermal conductivity of the busbar, helping dissipate heat generated during electrical conduction, which ensures the longevity and efficiency of the system.

5.Long Service Life: The combination of copper and nickel results in a busbar with a longer service life compared to uncoated copper or aluminum busbars, reducing maintenance costs and downtime in electrical systems.

6.Customization: Nickel Plated Copper Busbars can be customized in terms of dimensions, shape, current ratings, and insulation options to meet specific operational needs.

Application Areas

Nickel Plated Copper Busbars are used in a variety of industries that require high electrical performance and durability:

1.Power Distribution: These busbars are used in power distribution systems to connect electrical panels, transformers, and circuit breakers, ensuring efficient and reliable power flow.

2.Renewable Energy: In solar power systems, wind energy systems, and other renewable energy technologies, Nickel Plated Copper Busbars ensure efficient power transmission while resisting environmental factors like humidity and oxidation.

3.Electric Vehicles (EVs): In electric vehicles, Nickel Plated Copper Busbars are used to connect high-voltage components such as batteries, power inverters, and motors, ensuring efficient and safe power distribution.

4.Industrial Equipment: These busbars are widely used in industrial machinery and automated systems where high electrical currents are required, providing efficient power conduction and reducing wear over time.

5.Telecommunications: Nickel Plated Copper Busbars are used in telecommunications equipment and data centers for power distribution, ensuring uninterrupted service and minimizing energy losses.

6.Uninterruptible Power Supply (UPS) Systems: In UPS systems, these busbars help ensure that critical systems continue to receive power during outages, making them essential for backup power solutions in sectors like healthcare and finance.

7.Automotive and Aerospace: Used in electric and hybrid vehicles, as well as aerospace applications, Nickel Plated Copper Busbars provide reliable power transmission in environments subject to high vibrations and thermal stresses.

How to Design Nickel Plated Copper Busbar?

Designing a Nickel Plated Copper Busbar requires careful consideration of several factors to ensure that the busbar meets electrical, mechanical, and environmental requirements:

1.Current and Voltage Rating: The busbar must be designed to carry the required current without excessive voltage drop or overheating. Proper sizing ensures that the Nickel Plated Copper Busbar can handle the electrical load for the application.

2.Nickel Plating Thickness: The thickness of the nickel coating plays a crucial role in the busbar's corrosion resistance and durability. The plating must be thick enough to offer adequate protection but not so thick as to increase cost unnecessarily.

3.Shape and Size: The busbar can be designed in various shapes, including flat, L-shaped, or customized configurations, depending on space constraints and the specific electrical setup. The size must be optimized to minimize resistance and heat generation while ensuring sufficient mechanical strength.

4.Insulation: If required, insulation may be applied to prevent accidental electrical contact and enhance safety. This is particularly important for applications where the busbar will be exposed to external environments or where safety standards require additional protection.

5.Temperature and Environmental Considerations: The busbar’s design should take into account the temperature range and environmental conditions in which it will operate. This includes resistance to high temperatures, humidity, salt exposure, and other corrosive agents.

6.Mechanical Stress: The design should also account for mechanical stresses, such as bending, vibration, or impact, that could affect the integrity and performance of the busbar over time. Nickel plating increases mechanical strength, but the underlying copper design should also be robust.
