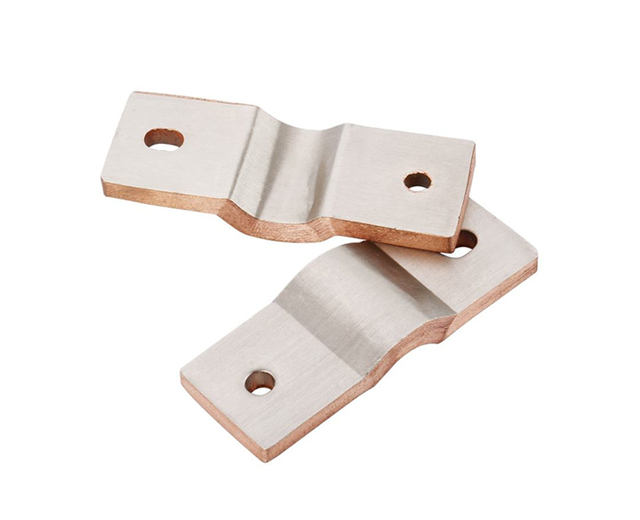

Tinned Copper Bus Bar

Tinned Copper Bus Bar is a copper electrical conductor with a tin-plated surface designed to provide excellent conductivity, corrosion resistance, and long-term connection reliability. By combining the superior electrical performance of copper with the protective properties of tin coating, tinned Copper Bus Bar is widely used in electric vehicles, battery systems, energy storage equipment, switchgear, and industrial electrical applications.

As a professional tinned copper busbar manufacturer and supplier, we provide customized tin plated Copper Bus Bar solutions according to different current requirements, dimensions, and application environments. Our products deliver stable electrical performance, enhanced durability, and reliable power transmission for demanding electrical systems.

What Is Tinned Copper Bus Bar?

A tinned copper bus bar is manufactured by applying a layer of tin coating onto a high-quality copper conductor through electro tin plating or hot tin plating processes.

The copper core provides:

• Excellent electrical conductivity

• High current carrying capability

• Efficient heat dissipation

• Mechanical strength

The tin plating layer provides:

• Improved corrosion resistance

• Oxidation protection

• Better contact reliability

• Enhanced solderability

Compared with bare copper busbars, a tin plated copper bus bar offers longer service life and better performance in humid, corrosive, or high-temperature environments.

How Does Tinned Copper Bus Bar Work?

A tinned copper bus bar works as a conductive pathway for transferring electrical current between power components. The copper core ensures efficient current transmission, while the tin coating protects the copper surface from oxidation and environmental damage.

During operation, the busbar:

• Transfers high current efficiently

• Maintains stable electrical connections

• Reduces contact resistance

• Improves system reliability

The protective tin layer prevents copper oxidation, helping maintain consistent electrical performance over long-term use.

Structure and Materials of Tinned Copper Bus Bar

Copper Core Material

The main conductor is usually made from high-quality copper materials, including:

• T2 copper

• C11000 copper

• High purity copper

These materials provide excellent conductivity and mechanical performance.

Tin Plating Layer

The copper surface is coated with tin through:

• Electro tin plating

• Hot dip tin plating

The tin coating thickness can be customized according to application requirements.

Common benefits include:

• Better corrosion resistance

• Improved surface protection

• Enhanced connection stability

Advantages of Tinned Copper Bus Bar

Excellent Electrical Conductivity

The copper core of a tinned copper bus bar provides excellent electrical conductivity and low resistance, ensuring efficient power transmission.

It is suitable for:

• High current applications

• Battery connections

• Power distribution systems

• Electrical equipment

Superior Corrosion and Oxidation Resistance

Copper surfaces may oxidize when exposed to air and moisture. The tin coating on a tin plated copper bus bar creates a protective barrier that improves resistance against:

• Humidity

• Oxidation

• Chemical corrosion

This makes tinned copper busbar ideal for harsh operating environments.

Reliable Electrical Contact Performance

The tin-plated surface improves connection stability by:

• Reducing oxidation at contact points

• Improving terminal connections

• Supporting long-term electrical reliability

Excellent Solderability

Tin provides good soldering performance, making tinned copper bus bar suitable for applications requiring soldered connections.

Tinned Copper Bus Bar Technical Specifications

Custom Tinned Copper Bus Bar Solutions

As an experienced tinned copper busbar supplier, we provide custom tinned copper bus bar solutions based on customer drawings, samples, and technical specifications.

Our customization services include:

• Customized dimensions and shapes

• Different copper thickness options

• Tin plating thickness adjustment

• Drilling and punching

• Terminal design

• Surface finishing

We provide reliable copper busbar with tin plating solutions for customers requiring high-performance electrical connections.

Applications of Tinned Copper Bus Bar

Electric Vehicle Battery Systems

With the development of electric vehicles, EV tinned copper busbar products are widely used in:

• Battery modules

• Battery packs

• Power distribution units

• Charging systems

The tin coating improves durability under conditions involving vibration, temperature changes, and humidity.

Battery Energy Storage Systems

Tinned copper bus bar is commonly used in battery energy storage systems for:

• Battery rack connections

• Energy storage cabinets

• High-current power transmission

The corrosion-resistant surface helps improve system reliability and service life.

Electrical Switchgear and Power Equipment

Applications include:

• Switch cabinets

• Distribution panels

• Transformers

• Industrial electrical equipment

Renewable Energy Systems

Tinned copper busbars are also used in:

• Solar energy systems

• Wind power systems

• Energy storage solutions

Tinned Copper Bus Bar vs Bare Copper Bus Bar

Why Choose Our Tinned Copper Bus Bar?

As a reliable tinned copper busbar manufacturer, we focus on providing high-quality copper connection solutions for global customers.

Our advantages include:

• Premium copper materials

• Advanced tin plating technology

• Stable electrical performance

• Excellent corrosion resistance

• Customized manufacturing capability

• OEM and ODM support

Whether you need a standard tinned copper bus bar, tin plated copper bus bar, or customized copper busbar solution, we can provide reliable products for EV, battery, and industrial electrical applications.

FAQ

What is a tinned copper bus bar?

A tinned copper bus bar is a copper conductor coated with a tin layer to improve corrosion resistance, oxidation protection, and electrical connection reliability.

Why use tin plating on copper busbars?

Tin plating protects copper from oxidation and corrosion while improving contact stability and solderability.

What are tinned copper bus bars used for?

Tinned copper bus bars are widely used in EV battery systems, energy storage systems, switchgear, power distribution equipment, and industrial electrical applications.

Can tinned copper bus bars be customized?

Yes. A professional tinned copper busbar manufacturer can customize dimensions, tin plating thickness, terminal designs, and surface treatments according to customer requirements.
