What Is Busbar in Solar Cell

In the modern solar industry, busbars play a critical role in the efficiency, reliability, and performance of solar panels. A busbar in a solar cell is a thin metallic strip designed to collect and conduct electrical current generated by the solar cell, delivering it to the module’s output terminals. Understanding the structure, working principle, types, installation, applications, and advantages of solar busbars is essential for manufacturers, suppliers, and system integrators.

1. Structure of Busbar in Solar Cells

A solar busbar is typically made from high-conductivity metals such as copper or silver-coated copper. Its structure usually consists of:

• Metallic Conductor: A thin strip, often flat and narrow, that collects electrons generated in the photovoltaic layer.

• Surface Coating: Many busbars are coated with silver or tin to reduce oxidation and enhance conductivity.

• Attachment to Solar Cell: Busbars are soldered or printed directly onto the solar cell’s surface, connecting the front and back contacts to form a complete electrical path.

Busbars can be rigid or flexible, depending on the solar panel type. Flexible Busbars are commonly used in thin-film or flexible solar panels, while rigid copper busbars are standard in crystalline silicon modules.

2. How Busbars Work in Solar Cells

The working principle of a busbar in a solar cell is simple but crucial:

1. When sunlight hits the solar cell, photons generate electron-hole pairs in the semiconductor material.

2. These electrons need a low-resistance path to flow from the cell to the external circuit.

3. The busbar collects the electrons from multiple points across the cell surface and conducts the current efficiently.

4. The collected electricity is then transferred to the solar panel’s output terminals or connected to battery busbar connections in photovoltaic systems.

By using busbars, the power loss due to resistance is minimized, and electricity can be safely and efficiently transferred.

3. Common Types of Solar Busbars

Solar busbars can vary depending on material, design, and application:

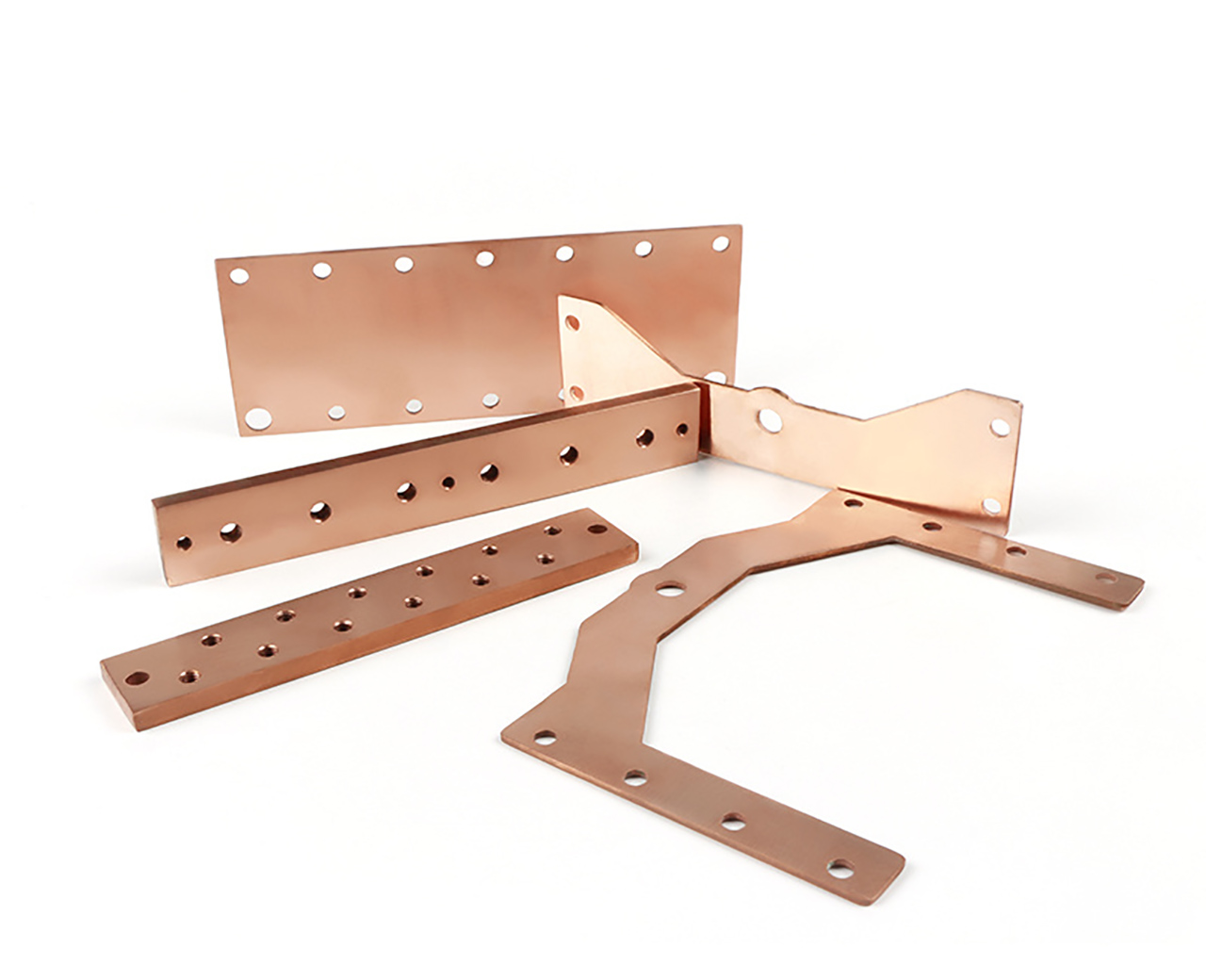

• Copper Busbar: Excellent conductivity and durability, widely used in high-efficiency solar panels.

• Silver-Coated Busbar: Reduces surface resistance and improves efficiency.

• Flexible Copper Busbar / Flexible Busbar: Laminated or braided design suitable for flexible solar modules, battery packs, and vibration-prone environments.

• Aluminum Busbar: Lightweight and cost-effective alternative, often used in low-current applications or large-area solar modules.

• Insulated Busbar: Coated with epoxy, PVC, or other insulating material to prevent short circuits in multi-cell configurations.

4. Installation of Solar Busbars

Proper installation ensures maximum efficiency and reliability:

1. Surface Preparation: Clean the solar cell surface to remove dust, oils, or oxidation.

2. Soldering or Printing: Attach the busbar using soldering paste or conductive silver ink.

3. Alignment: Ensure the busbar runs across the cell uniformly to optimize current collection.

4. Connection to External Busbar or Ribbon: Connect the cell busbars to module-level busbars using copper ribbon, solder, or mechanical connectors.

5. Inspection: Check for cold solder joints or loose connections to prevent power loss.

Correct installation improves durability, reduces hotspots, and enhances overall module efficiency.

5. Applications of Busbars in Solar Technology

Busbars are widely used in solar energy systems for various applications:

• Crystalline Silicon Solar Panels: Standard busbars provide efficient current collection and distribution.

• Thin-Film Solar Panels: Flexible busbars maintain performance while allowing panel bending.

• Solar Battery Packs: Busbars connect multiple cells to form battery banks for energy storage.

• Photovoltaic Arrays: High-voltage solar arrays use busbars for interconnecting cells and panels efficiently.

• EV Solar Charging Systems: Busbars facilitate fast and reliable power transfer from solar modules to batteries.

6. Advantages of Busbars in Solar Cells

The purpose and benefits of busbars in solar panels include:

• High Electrical Conductivity: Efficiently collects and transfers current.

• Reduced Power Loss: Low-resistance paths minimize energy loss.

• Enhanced Mechanical Stability: Provides structural support to the fragile solar cells.

• Flexibility Options: Flexible busbars adapt to bending and vibration in portable or thin-film modules.

• Durability and Corrosion Resistance: Silver-coated or tin-plated busbars extend service life.

• Simplified Module Assembly: Reduces the number of connections and improves reliability.

By integrating copper busbar, flexible copper busbar, aluminum busbar, and Solid Busbar designs, manufacturers can achieve high-performance solar modules that meet international standards.

The busbar in solar cells is a small but essential component that ensures efficient power collection, transmission, and durability of solar modules. With proper design, material selection, and installation, busbars maximize energy yield and system reliability. Whether using copper busbar, flexible copper busbar, aluminum busbar, or insulated busbars, every solar panel benefits from the precise engineering of its busbar system.
