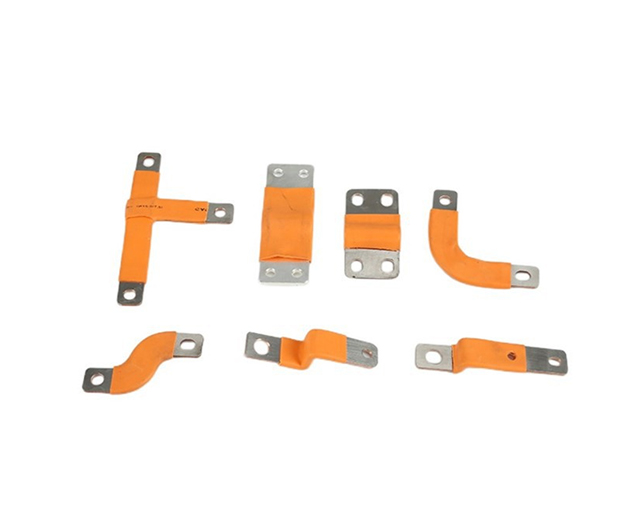

How to Make a Copper Busbar

Copper busbars are essential components in modern electrical systems, widely used in power distribution, switchgear, battery packs, and industrial panels. Knowing how to make a copper busbar ensures that it performs efficiently, safely, and reliably.

1. Materials Selection

The first step in making a copper busbar is choosing the right material, which directly affects conductivity, durability, and corrosion resistance. Common materials include:

• Pure Copper Busbar: Offers high conductivity and excellent thermal performance. Ideal for most power distribution and industrial applications.

• Tinned Copper Busbar / Copper Tinned Busbar: Provides anti-oxidation properties, especially suitable for battery packs and humid environments.

• Flexible Copper Busbar / Flexible Busbar Copper: Laminated or braided design, perfect for applications requiring bending or vibration resistance.

• PVC Copper Busbar: Insulated copper busbar for additional safety in compact panel designs.

• Copper Tubular Busbar: Used in high-current or specialized industrial applications.

• Hard Copper Busbar: Rigid, mechanically strong, suitable for fixed panel installations.

Key considerations for material selection:

• Electrical conductivity requirements

• Mechanical strength

• Corrosion resistance and environmental conditions

• Flexibility for installation constraints

2. Steps to Make a Copper Busbar

Creating a high-quality copper busbar involves several precise steps:

Step 1: Cutting

• Measure the required length, width, and thickness according to the system’s current rating and design specifications.

• Cut the copper sheet or rod accurately using shearing machines, laser cutters, or CNC machines.

Step 2: Punching and Drilling

• Punch holes or slots for bolted connections to equipment, panels, or connectors.

• Maintain precise spacing to ensure even current distribution.

Step 3: Bending and Forming

• Use press brakes, rollers, or custom jigs to achieve the required shape.

• Flexible copper busbars may be laminated or braided to allow multi-directional bending without damaging the conductor.

Step 4: Surface Treatment

• Tin Plating or Silver Coating: Protects against corrosion and reduces surface resistance.

• Insulation Coating (PVC, epoxy, or heat shrink): Enhances safety and prevents short circuits in compact panels.

Step 5: Assembly and Connector Installation

• Attach Copper Busbar Connectors, flexible busbar connectors, or Battery Busbar connectors as required by the application.

• Ensure tight mechanical and electrical connections to minimize resistance and heat generation.

Step 6: Testing

• Conduct electrical tests such as continuity, resistance, and insulation resistance to ensure the busbar meets design requirements.

• Check mechanical strength for vibration or bending stress, especially for flexible busbars.

3. Important Precautions

When making a copper busbar, attention to detail ensures long-term performance:

1. Avoid scratches or surface damage – they can reduce conductivity and promote corrosion.

2. Maintain clean surfaces before plating or insulation – dirt and oil reduce adhesion.

3. Ensure proper alignment of holes and connectors – misalignment can cause uneven current flow or overheating.

4. Select proper thickness and width – undersized busbars may overheat and fail.

5. Use suitable tools for flexible busbars – excessive bending may break laminates or strands.

4. Applications of Copper Busbars

Copper busbars are highly versatile and used in multiple applications:

• Electrical Panels and Switchgear: Solid or laminated busbars distribute power efficiently across circuits.

• Battery Packs: Flexible or tinned copper busbars connect cells in EV batteries, UPS systems, or solar energy storage.

• Industrial Machinery: Hard copper busbars handle high-current connections in motors, transformers, or welding equipment.

• Renewable Energy Systems: Flexible and insulated busbars connect PV modules or battery banks safely.

• Compact Electronics or High-Vibration Environments: Flexible copper busbars allow bending and movement without compromising performance.

By producing copper busbars with the right material, thickness, and flexibility, manufacturers can optimize efficiency, reduce energy loss, and ensure long-term reliability.

Knowing how to make a copper busbar is crucial for creating reliable electrical systems. From material selection to cutting, bending, surface treatment, and connector installation, each step contributes to the performance and longevity of the busbar. Whether you need flexible busbar, copper tinned busbar, PVC copper busbar, or hard copper busbar, proper design and production ensure safe, efficient, and durable current conduction in electrical panels, battery packs, and industrial applications.
