What Is the Purpose of a Bus Bar

Bus bars are essential components in electrical systems, power distribution, industrial machinery, and battery packs. Understanding what is the purpose of a bus bar is critical for engineers, electricians, and industrial buyers to design efficient and safe electrical networks.

1. Functions of a Bus Bar

The primary purpose of a bus bar is to conduct and distribute electrical current efficiently across various circuits or devices. Key functions include:

• Current Collection and Distribution: Bus bars collect current from the main power source and distribute it to multiple branches or equipment.

• Reducing Resistance and Energy Loss: With larger cross-sectional areas than standard wires, bus bars minimize electrical resistance and voltage drops.

• Simplifying Electrical Connections: By providing centralized connection points, bus bars reduce wiring complexity, improve system organization, and facilitate maintenance.

• Supporting High-Current Systems: Bus bars can carry large currents that individual cables cannot handle, making them ideal for industrial, automotive, or renewable energy applications.

• Enhancing System Stability: Bus bars evenly distribute current, preventing voltage fluctuations, overloads, and potential equipment damage.

2. Types of Bus Bars

Bus bars come in various types depending on the material, flexibility, and application. Understanding the differences helps in selecting the right bus bar for your system:

• Copper Busbar: Offers excellent electrical conductivity and is widely used in switchgear, panels, and battery packs.

• Aluminum Busbar: Lightweight and cost-effective, suitable for large power distribution networks.

• Flexible Busbar / Flexible Copper Busbar: Laminated or braided designs allow bending and vibration resistance, ideal for battery packs and compact panels.

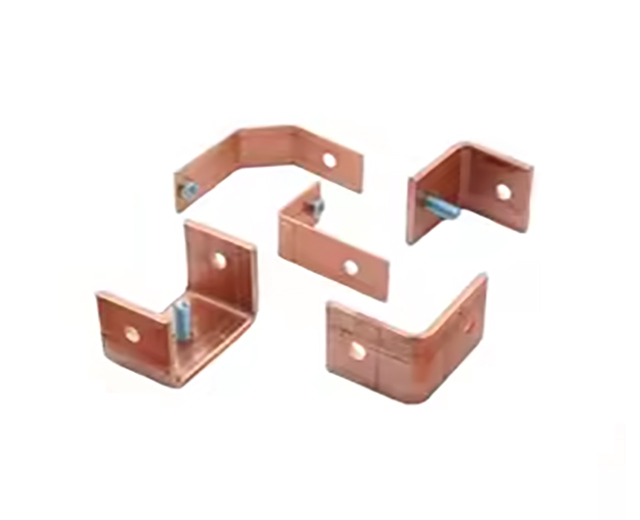

• Solid Busbar / Solid Copper Busbar: Rigid and mechanically strong, used in industrial switchgear and high-current panels.

• Battery Busbar: Specialized busbars designed to connect cells in EV batteries, UPS systems, and solar battery banks.

• Insulated Busbar: Covered with protective coatings (PVC, epoxy) to prevent short circuits and enhance safety in compact or high-voltage systems.

3. Applications of Bus Bars

Bus bars are highly versatile and are used across numerous industries:

• Electrical Panels and Switchgear: Distribute power efficiently in commercial and industrial installations.

• Battery Packs and Energy Storage Systems: Connect battery cells using flexible or tinned copper busbars, ensuring low resistance and stable performance.

• Renewable Energy Systems: Bus bars in solar panels or wind energy converters enable safe, efficient power distribution.

• Industrial Machinery: Rigid copper busbars handle high currents in motors, transformers, and welding equipment.

• Automotive and Electric Vehicles: Flexible copper busbars connect high-power components while absorbing vibrations and movement.

By choosing the right type of bus bar, engineers can optimize efficiency, safety, and durability across all these applications.

4. Advantages of Bus Bars

Using bus bars offers multiple advantages over traditional wiring:

1. High Current Capacity: Bus bars can carry large currents without overheating.

2. Reduced Energy Loss: Larger surface area minimizes resistance, lowering energy loss.

3. Improved Safety: Centralized and insulated bus bars reduce the risk of short circuits and fire.

4. Space Saving: Compact busbar designs reduce wiring clutter, enabling smaller panel sizes.

5. Ease of Maintenance: Centralized connection points simplify inspection, replacement, and upgrades.

6. Durability and Reliability: Materials like copper and tinned copper resist corrosion, ensuring long-term performance.

Understanding what is the purpose of a bus bar is essential for designing efficient, safe, and reliable electrical systems. By selecting the appropriate type — whether it is a copper busbar, aluminum busbar, flexible copper busbar, or solid busbar — you can ensure high current-carrying capacity, stability, and longevity in panels, battery packs, industrial machinery, and renewable energy applications. Properly designed and maintained busbars are a cornerstone of modern electrical engineering and industrial power distribution.
