Why Bus Bar Is Used

In modern electrical systems, bus bars play a critical role in ensuring efficient power distribution, safety, and system reliability. Understanding why bus bar is used is essential for engineers, industrial buyers, and electrical designers who want to optimize performance and minimize energy loss.

1. Purpose and Function of Bus Bars

The main reason bus bars are used in electrical systems is to conduct and distribute electrical current efficiently. Key functions include:

• Current Collection and Distribution: Bus bars gather electricity from the main power source and distribute it to multiple circuits, devices, or battery cells.

• Reducing Energy Loss: Compared to traditional wiring, bus bars have a larger cross-sectional area, which minimizes electrical resistance and reduces voltage drops.

• Simplifying Electrical Connections: Bus bars provide a centralized point for connecting multiple wires or equipment, reducing system complexity and easing maintenance.

• Supporting High-Current Applications: Bus bars can handle much higher currents than individual cables, making them suitable for industrial panels, battery systems, and power distribution networks.

• Enhancing Safety and Stability: Even current distribution reduces the risks of overloads, overheating, short circuits, and voltage fluctuations.

2. Types of Bus Bars

Bus bars are available in different types to meet diverse electrical requirements:

• Copper Busbar: Offers excellent conductivity, commonly used in electrical panels, switchgear, and battery packs.

• Aluminum Busbar: Lightweight, cost-effective, suitable for large-scale power distribution networks.

• Flexible Busbar / Flexible Copper Busbar: Laminated or braided to allow vibration resistance and compact installation, often used in EV battery packs or portable devices.

• Solid Busbar / Solid Copper Busbar: Rigid and mechanically strong, ideal for industrial high-current applications.

• Battery Busbar: Specifically designed for connecting battery cells in electric vehicles, solar storage, or UPS systems.

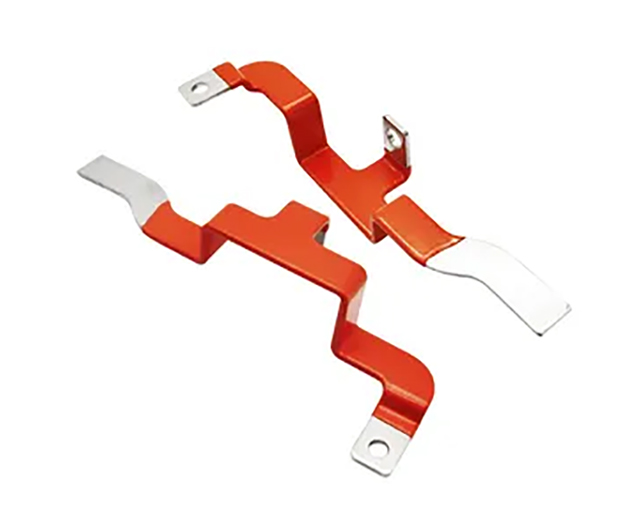

• Insulated Busbar: Coated with PVC, epoxy, or other materials for safety in high-voltage or compact systems.

3. Applications of Bus Bars

Bus bars are versatile and applied in a wide range of industries:

• Power Distribution Panels and Switchgear: Efficiently distribute electricity in commercial and industrial facilities.

• Battery Systems: Connect battery cells using battery busbars or flexible copper busbars for reliable performance.

• Renewable Energy Systems: Used in solar panels and wind power converters for efficient energy transfer.

• Industrial Equipment: Rigid copper bus bars carry high currents in motors, transformers, and welding machines.

• Automotive and EV Systems: Flexible bus bars accommodate vibrations and movements while connecting high-power components safely.

By using the correct type of bus bar, engineers and buyers can ensure safe, reliable, and efficient electricity flow in all these applications.

4. Advantages of Using Bus Bars

Using bus bars instead of conventional wiring offers numerous benefits:

1. High Current Capacity: Bus bars handle large currents without overheating.

2. Reduced Energy Loss: Larger cross-sectional areas reduce resistance and voltage drops.

3. Enhanced Safety: Centralized and insulated bus bars lower the risk of short circuits, fire, and accidents.

4. Space Efficiency: Compact designs reduce wiring clutter in panels and switchgear.

5. Ease of Maintenance: Centralized connections simplify inspection, testing, and replacements.

6. Durability and Reliability: Materials like copper and aluminum resist corrosion, ensuring long-term performance.

Understanding why bus bar is used is essential for designing efficient, reliable, and safe electrical systems. Selecting the appropriate type — whether copper busbar, aluminum busbar, flexible copper busbar, or solid busbar — ensures high current capacity, system stability, and long-term durability. Bus bars are crucial for power distribution, battery systems, industrial machinery, and renewable energy applications, providing a safe and efficient path for electrical current.
