What Are Electrical Bus Bars

In modern electrical systems, electrical bus bars are essential components that ensure efficient power distribution, safety, and reliability. Understanding what are electrical bus bars is crucial for engineers, industrial buyers, and system designers seeking to optimize performance and minimize energy loss.

1. Definition of Electrical Bus Bars

Electrical bus bars are large, flat, or thick metallic conductors used to collect, conduct, and distribute electrical current within power systems. Unlike regular cables, bus bars can handle high current loads with minimal energy loss. Typically made of copper or aluminum, they serve as the backbone of power distribution in industrial panels, switchgear, and battery systems.

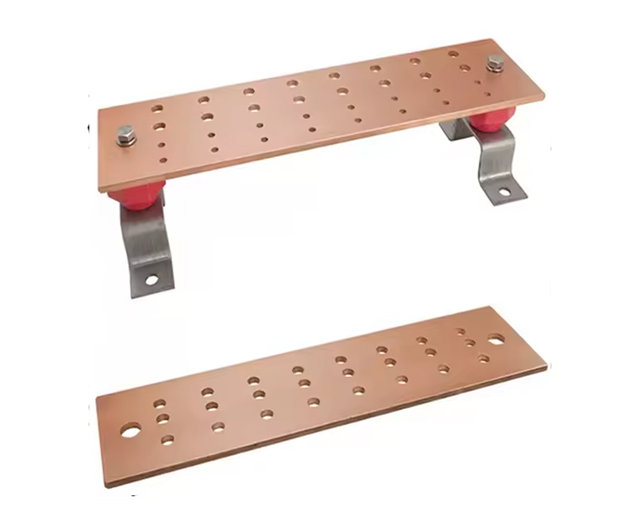

A typical electrical bus bar may appear as a flat metal strip or bar, sometimes with holes for bolted connections, and can vary in width and thickness depending on current requirements.

2. Functions of Electrical Bus Bars

The primary functions of electrical bus bars include:

• Current Collection and Distribution: Bus bars gather electricity from the power source and distribute it to multiple circuits or devices.

• Reduction of Energy Loss: Large cross-sectional areas of bus bars reduce electrical resistance and voltage drop, improving efficiency.

• Centralized Connections: They serve as a central point for wiring, reducing system complexity and simplifying maintenance.

• High Current Support: Bus bars can handle much higher currents than conventional cables, making them suitable for industrial machinery, battery packs, and switchgear.

• System Stability: Even distribution of current minimizes overloads, overheating, and voltage fluctuations, ensuring reliable operation.

3. Types of Electrical Bus Bars

Electrical bus bars come in a variety of forms to meet different system requirements:

• Copper Busbar: Excellent conductivity, widely used in switchgear, electrical panels, and battery packs.

• Aluminum Busbar: Lightweight and cost-effective, ideal for large-scale power distribution.

• Flexible Busbar / Flexible Copper Busbar: Laminated or braided to provide vibration resistance and compact installation, commonly used in EV battery packs or mobile equipment.

• Solid Busbar / Solid Copper Busbar: Rigid, mechanically strong, perfect for high-current industrial applications.

• Battery Busbar: Designed for connecting battery cells in electric vehicles, UPS systems, and solar storage.

• Insulated Busbar: Coated with PVC, epoxy, or other insulating materials for high-voltage safety.

4. Applications of Electrical Bus Bars

Electrical bus bars are versatile components applied across many industries:

• Power Distribution Panels and Switchgear: Centralized distribution for commercial and industrial facilities.

• Battery Systems: Connecting battery cells using battery busbars or flexible copper busbars.

• Renewable Energy Systems: Used in solar panels and wind power converters for efficient electricity transfer.

• Industrial Machinery: Rigid copper bus bars carry high currents in motors, transformers, and welding machines.

• Automotive and Electric Vehicles: Flexible bus bars connect high-power components, accommodating vibrations and movement.

By selecting the appropriate type, electrical systems can achieve high reliability, low energy loss, and efficient current flow.

5. Advantages of Using Electrical Bus Bars

• High Current Capacity: Capable of handling large currents without overheating.

• Reduced Energy Loss: Large cross-sectional areas minimize voltage drops and resistive losses.

• Enhanced Safety: Centralized and insulated bus bars reduce the risk of short circuits and fire.

• Space Efficiency: Compact designs reduce clutter in electrical panels and switchgear.

• Ease of Maintenance: Centralized connection points simplify inspection, testing, and replacement.

• Durability and Reliability: Materials like copper and aluminum resist corrosion for long-term use.

Understanding what are electrical bus bars is essential for designing efficient, reliable, and safe electrical systems. By choosing the right type — whether copper busbar, aluminum busbar, flexible copper busbar, or solid busbar — engineers and buyers can optimize system performance, current distribution, and operational longevity. Electrical bus bars are a cornerstone in industrial panels, battery systems, power distribution, and renewable energy applications, providing a safe, stable, and efficient pathway for electricity.
