How to Calculate Bus Bar Rating

In electrical engineering, correctly sizing a busbar is crucial to ensure safety, efficiency, and reliability. Understanding how to calculate bus bar rating allows engineers and industrial buyers to design power distribution systems that meet operational demands without overheating or risking failure.

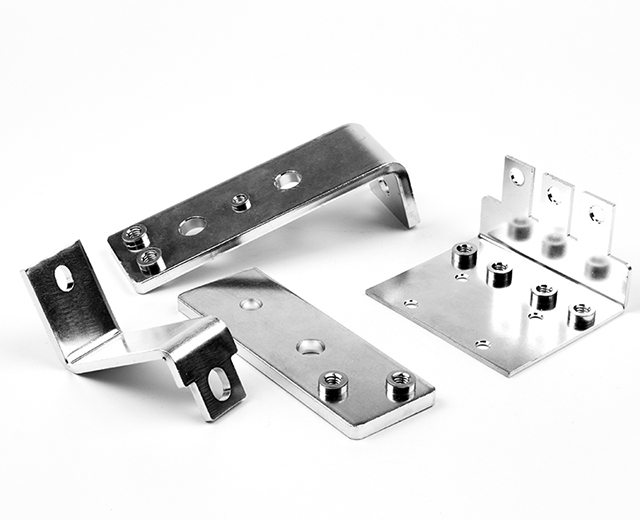

1. What Is Bus Bar Rating?

A bus bar rating refers to the maximum current a bus bar can safely carry under specific environmental and operational conditions. This rating ensures that the bus bar will not overheat, maintain its mechanical integrity, and comply with safety standards. Proper calculation of the bus bar rating is essential for electrical panels, switchgear, battery systems, industrial machinery, and renewable energy installations.

2. Factors Affecting Bus Bar Rating

Several factors influence the current-carrying capacity of a bus bar:

1. Material

• Copper Busbar: High conductivity, typically higher current rating for the same cross-section.

• Aluminum Busbar: Lighter and more cost-effective but lower conductivity than copper.

2. Cross-sectional Area

• Width × Thickness of the bus bar directly affects the resistance and current-carrying capacity.

3. Bus Bar Length

• Longer bus bars have higher resistance, causing more heat generation.

4. Insulation and Environment

• Bus bars can be insulated (PVC, epoxy) or bare; ambient temperature, ventilation, and enclosure type affect heat dissipation.

5. Load Characteristics

• Continuous load vs. intermittent load, peak currents, and duty cycles impact the rating.

3. How to Calculate Bus Bar Rating

Step 1: Determine Electrical Parameters

• Identify system voltage and maximum current requirements.

• Define whether the bus bar will handle continuous or intermittent loads.

Step 2: Choose Material

• Select copper busbar, aluminum busbar, Flexible Busbar, or Solid Busbar depending on conductivity, space, weight, and cost constraints.

Step 3: Calculate Required Cross-Sectional Area

A simplified formula for current-carrying capacity:

$$\mathrm{<span\; style="font-size:\; 16px;">I</span>}<span\; style="font-size:\; 16px;">=</span>\mathrm{<span\; style="font-size:\; 16px;">k</span>}<span\; style="font-size:\; 16px;">\times </span>\mathrm{<span\; style="font-size:\; 16px;">A</span>}$$I = k \times AI=k×A

Where:

• I = Bus bar allowable current (A)

• A = Cross-sectional area (mm²)

• k = Material factor (A/mm², depends on copper or aluminum and cooling conditions)

• Copper: 1.2–1.7 A/mm²

• Aluminum: 0.8–1.2 A/mm²

Example: For a copper busbar with 50 mm² cross-section and k = 1.5 A/mm²:

$$\mathrm{<span\; style="font-size:\; 16px;">I</span>}<span\; style="font-size:\; 16px;">=</span>\mathrm{<span\; style="font-size:\; 16px;">1.5</span>}<span\; style="font-size:\; 16px;">\times </span>\mathrm{<span\; style="font-size:\; 16px;">50</span>}<span\; style="font-size:\; 16px;">=</span>\mathrm{<span\; style="font-size:\; 16px;">75</span>}\mathrm{<span\; style="font-size:\; 16px;">A</span>}$$I = 1.5 \times 50 = 75AI=1.5×50=75A

Step 4: Check Temperature Rise

• Consider ambient temperature and insulation type.

• Use correction factors to adjust busbar current rating for higher temperatures or restricted ventilation.

Step 5: Select Bus Bar Dimensions

• Adjust width and thickness to achieve the desired rating.

• Ensure mechanical strength and compatibility with busbar connectors and electrical enclosures.

4. Key Considerations

• Flexibility Requirements: For systems with vibrations or thermal expansion, consider flexible busbar or laminated copper busbar.

• Voltage Drop: Ensure minimal voltage drop along the bus bar length, especially in high-current systems.

• Safety Compliance: Follow standards such as IEC, UL, or local electrical codes.

• Cooling: Proper spacing, airflow, or heat sinks may be required for high-current applications.

• Connection Points: Ensure busbar connectors, copper busbar connectors, or battery busbar connections are rated for the expected current.

5. Applications of Bus Bar Rating Calculations

Accurate bus bar sizing is critical in many industries:

1. Power Distribution Systems – Low voltage busbar, high voltage busbar, switchgear, industrial panels.

2. Battery Systems – EV battery busbars, UPS battery packs, and renewable energy storage systems.

3. Industrial Equipment – Motors, transformers, and welding machines requiring high-current bus bars.

4. Renewable Energy – Solar power busbars and wind turbine connections for efficient power flow.

5. Custom Applications – Flexible busbar copper, Solid Copper Busbar, and aluminum busbar for specialized machinery.

Knowing how to calculate bus bar rating is essential for designing safe and efficient electrical systems. By selecting the right material, cross-sectional area, and configuration, engineers and industrial buyers can ensure optimal current-carrying capacity and system reliability. Whether you choose copper busbar, aluminum busbar, flexible busbar, or solid busbar, proper rating calculation reduces energy loss, enhances safety, and prolongs service life. Accurate bus bar sizing is a key step in industrial, automotive, renewable energy, and power distribution applications.
