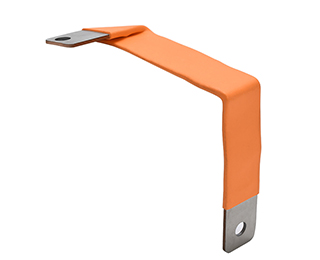

Laminated Copper Busbar, a high-performance conductor used in the transmission and distribution of electrical power, plays a key role in a variety of electrical applications due to its excellent thermal management capabilities.
Laminated Copper BusBar Construction Characteristics
Laminated Copper Busbars are made of multiple layers of copper sheets through a high-pressure lamination process, and each layer usually contains an insulating layer between the copper sheets. This multi-layer structure not only enhances the mechanical strength and electrical performance, but also significantly improves the thermal management capability. The structural design of laminated copper busbars enables them to effectively manage and dissipate the heat generated during power transmission.
Reduced heat buildup
1. Highly thermally conductive material:Copper is a material with excellent thermal conductivity and is able to quickly conduct heat generated from the inside of the conductor to the surface. The copper sheet layer in the laminated copper busbar effectively reduces heat buildup through its excellent thermal conductivity, thus reducing the accumulation of heat inside the busbar.
2. Multi-layer design:The multi-layer structure of the laminated copper busbar helps to disperse heat. The combination of the thermal conductivity of each copper layer allows heat to be evenly distributed throughout the interior of the busbar, reducing the risk of localized overheating.
3. Optimized insulation:The insulation of laminated copper busbars not only provides electrical isolation, but also assists in the dissipation of heat. The high-performance insulation material has good thermal conductivity and can effectively transfer the heat generated inside to the outside of the busbar.
Optimized Heat Dissipation
1. Highly efficient heat dissipation design:Laminated copper busbars are designed with heat dissipation performance in mind, by increasing the surface area and optimizing the structure to enhance heat dissipation. The large surface area and good heat dissipation design help to release heat quickly into the environment, thus maintaining the normal operating temperature of the busbar.
2. Thermal diffusion effect:The laminated structure of the multi-layer copper sheet promotes thermal diffusion, which enables the heat to be distributed more evenly over the entire surface of the busbar. This thermal diffusion reduces the formation of hot spots and minimizes the risk of system overheating.
3. Environmental adaptability:The thermal management capability of laminated copper busbar also depends on its performance in different environmental conditions. High-quality laminated copper busbar can work stably at high temperatures or under harsh environmental conditions, maintaining good thermal management performance.
Enhances power system stability and reliability
1. Reduce thermal stress:Through effective thermal management, laminated copper busbars can reduce the impact of thermal stress on conductors. Overheating causes material expansion and deformation, which affects the performance and life of the conductor. Good thermal management capabilities can effectively reduce these risks and improve system stability.
2. Extend equipment life:Optimized thermal management prevents conductor deterioration and insulation damage due to overheating, thus extending the life of laminated copper busbars and related power equipment. This not only improves system reliability, but also reduces maintenance and replacement costs.
3. Improve system efficiency:By reducing heat build-up and optimizing heat dispersion, laminated copper busbars keep power systems running efficiently. Lower operating temperatures help reduce energy losses and improve the overall efficiency of power transmission.
Laminated copper busbars are key components in power transmission and distribution systems due to their excellent thermal management capabilities. Through highly thermally conductive materials, multi-layer design and optimized insulation, laminated copper busbars are able to effectively reduce heat build-up, optimize heat dissipation, and enhance the stability and reliability of power systems. These characteristics allow laminated copper busbars to excel in high-current and high-frequency power applications, providing a reliable power transmission solution.
