What Is Busbar in Power System

A busbar in a power system is a metallic conductor, typically made of copper or aluminum, that serves as a central node for collecting, distributing, and transmitting electrical power. It is a crucial component in substations, switchgear, industrial power systems, and renewable energy installations, providing a reliable path for high current flow with minimal resistance and voltage drop.

Key Functions of Busbar in Power Systems

1. Power Collection

Busbars collect electricity from multiple sources, such as generators, transformers, or battery systems, and consolidate it into a central distribution point. This centralization improves efficiency and simplifies system design.

2. Power Distribution

A busbar distributes electrical power to several outgoing circuits. Compared to traditional cabling, busbars provide a more compact, efficient, and reliable way to manage multiple circuits in industrial, commercial, and utility-scale power systems.

3. High Current Conduction

Busbars are designed to carry large currents safely. Options such as Flexible Copper Busbar and Solid Copper Busbar ensure excellent conductivity while reducing heat generation and energy loss. Aluminum Busbars offer a lightweight alternative for large-scale installations where cost and weight are considerations.

4. System Stability and Reliability

By centralizing connections, busbars enhance system reliability. They reduce loose connections, minimize voltage drops, and help prevent short circuits. Insulated Copper Busbars, including PVC Insulated Copper Busbar and Epoxy Insulated Copper Busbar, add an extra layer of safety in high-voltage or closely spaced systems.

5. Compact and Space-Saving Design

Busbars reduce the need for complex cabling networks, saving space in distribution panels and switchgear. This allows engineers to design high-density, efficient, and maintainable electrical systems.

Types of Busbars in Power Systems

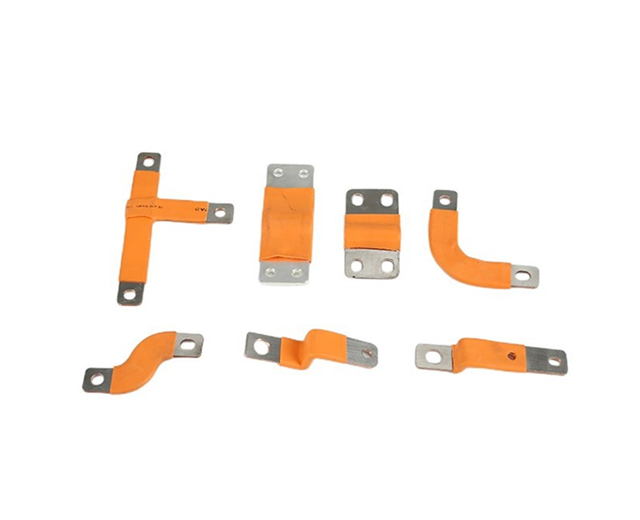

• Flexible Copper Busbar: Ideal for vibration-prone, moving, or thermal-expansion-sensitive systems, such as battery connections or EV power modules.

• Solid Copper Busbar: Offers rigidity, high conductivity, and is suitable for high-current fixed installations.

• Aluminum Busbar: Lightweight, cost-effective solution for large-scale or medium-voltage power distribution.

• Insulated Copper Busbar: Improves safety and prevents electrical faults, available in PVC or Epoxy Insulation.

• High-Current Copper Busbar Assemblies: Engineered for extreme current applications in industrial or renewable energy systems.

• Copper Busbar Connector & Custom Solutions: Ensures secure connections, minimal contact resistance, and reliability in complex layouts.

Applications of Busbars in Power Systems

Busbars are widely used across multiple sectors, including:

• Substations and Switchgear: Central collection and distribution of power.

• Industrial Power Systems: Factories and manufacturing plants with high current loads.

• Battery Systems and Electric Vehicles: Using Custom Battery Busbar and flexible assemblies for safe, high-current connections.

• Renewable Energy Systems: Solar, wind, and energy storage installations.

• Data Centers and Critical Infrastructure: High-current, reliable, and compact power distribution.

Advantages of Using Busbars in Power Systems

• Low Electrical Resistance – Reduces energy loss and heat generation.

• High Current Capacity – Suitable for industrial and utility-scale applications.

• Reliable and Safe – Minimizes loose connections and short circuits.

• Space-Saving Layout – Simplifies electrical panel and switchgear design.

• Customizable – Copper Busbar Fabrication and Copper Busbar Customization allow tailored solutions for voltage, current, and space requirements.

A busbar in a power system is a vital component that ensures efficient, safe, and reliable power distribution. Whether it is Flexible Copper Busbar, Solid Copper Busbar, Insulated Copper Busbar, or High-Current Copper Busbar Assemblies, busbars provide an optimal solution for modern electrical systems. With advanced Copper Busbar Fabrication and Copper Busbar Customization, engineers can design power systems that maximize performance, safety, and durability in industrial, commercial, and renewable energy applications.
