A Copper Earth Busbar (earth busbar / earth bus bar) is a critical component in electrical grounding systems used to safely collect and distribute fault current into the earth. It is widely applied in industrial, commercial, and power distribution systems to ensure electrical safety, system stability, and equipment protection.
In modern electrical engineering, it is also referred to as:
earth busbar
earth bus bar
grounding busbar
bare copper ground bar
tinned copper earth bar
electrical earth strip
Many busbar manufacturers and Copper Busbar suppliers provide customized copper earth busbar solutions for different grounding requirements.

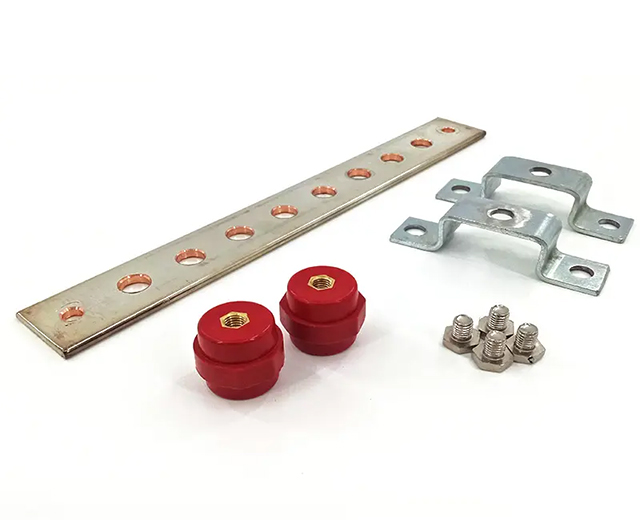

A Copper Earth Busbar is a conductive copper strip or bar that serves as a central grounding point in an electrical system. All grounding wires from equipment, panels, and structures are connected to this busbar, creating a unified and safe grounding network.
Typical materials include:
Bare copper (Bare Copper Ground Bar)
Tinned copper (Tinned Copper Earth Bar)
The goal is to create a low-resistance path to earth, ensuring electrical safety.
The purpose of a Copper BusBar in grounding systems is to:
Provide a centralized grounding point
Safely discharge fault current to earth
Prevent electric shock hazards
Protect electrical equipment from damage
Stabilize voltage levels in the system
In short, a copper grounding system built with a reliable busbar improves both safety and performance.
A standard earth busbar or earth bus bar usually includes:
High-purity copper such as:
C1100 copper
Oxygen-free copper
Bare copper finish
Tin plating (Tinned Copper Earth Bar)
Pre-drilled holes for:
Cable lugs
Grounding wires
Bolted connections
A copper earth busbar is widely used in:
Electrical distribution panels
Switchgear grounding systems
Control cabinets
Manufacturing plants
Automation systems
Heavy machinery grounding
Commercial buildings
Data centers
Server rooms
Substation ground bar (Substation Ground Bar)
Lightning protection busbar
Renewable energy systems
Proper earth busbar installation is essential for system safety.
Key installation principles:
Install in accessible control panels or grounding boxes
Ensure tight bolted connections
Use correct cable lugs for grounding wires
Maintain low resistance path to earth
Avoid corrosion and loose connections
A well-installed copper earthing system ensures long-term reliability.
This is a common engineering question:
Used to distribute electrical power
Carries high current between circuits
Found in switchboards and power systems
Used for safety grounding only
Does not carry operational load current
Provides fault current path to earth
Summary:
Bus bar = power distribution
Earth bar = safety grounding
Both are essential but serve different functions in an electrical system.
Excellent electrical conductivity
Low resistance grounding path
High durability and long service life
Strong corrosion resistance (especially tinned type)
Easy installation and maintenance
Suitable for high fault current discharge
A complete grounding solution may include:
Copper Earth Busbar
Grounding Busbar
Tinned Copper Earth Bar
Electrical Earth Strip
Bare Copper Ground Bar
Copper Grounding Kit
Lightning Protection Busbar
Custom Earth Busbar
These products are often supplied by professional Copper Busbar Suppliers and busbar manufacturers.
A Copper Earth Busbar is a fundamental component of modern electrical grounding systems. It ensures safe fault current discharge, protects equipment, and maintains system stability across industrial, commercial, and power applications.
Whether used as an earth busbar, earth bus bar, or grounding busbar, it plays a vital role in every copper earthing system, especially in substations, control panels, and lightning protection systems.
For customized solutions, working with experienced busbar manufacturers ensures proper design, material selection, and long-term performance.
