What is a Copper Tubular Busbar?

A Copper Tubular Busbar is a high-performance electrical conductor designed for efficient power transmission in modern electrical systems. It is widely used in power distribution busbar systems where high current capacity, low resistance, and optimized thermal performance are required.

Compared with traditional Solid Busbars, a Copper Tube Busbar uses a tubular (hollow) structure to improve efficiency while reducing weight and material usage. Many Custom Copper Busbar Manufacturer companies provide tailored solutions based on system requirements.

What is a Copper Tubular Busbar?

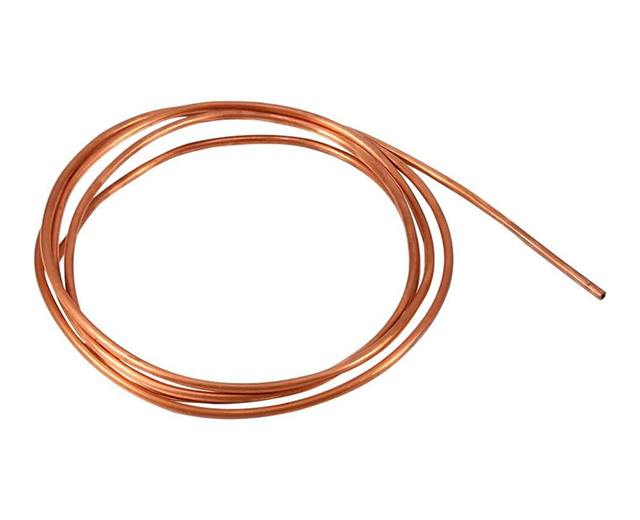

A Copper Tubular Busbar (also called Copper Tube Busbar) is a cylindrical or tubular-shaped electrical busbar made from high-conductivity copper. It is used as a Copper Busbar Conductor to distribute electrical power in industrial and commercial systems.

It can be classified into different types:

• Hollow Copper Tubular Busbar

• Solid Copper Tubular Busbar

• High Current Copper Busbar

• Nickel-plated Copper Busbar

Its main function is to efficiently carry large electrical currents with minimal energy loss.

Structure of Copper Tubular Busbar

1. Copper Material Core

The base material is typically high-purity copper such as:

• Oxygen-free copper (OFC)

• C1100 copper

This ensures excellent conductivity for High Current Copper Busbar applications.

2. Tubular Design

The key feature is its hollow structure:

• Hollow Copper Tubular Busbar → lightweight, better heat dissipation

• Solid Copper Tubular Busbar → higher mechanical strength, used in heavy-duty systems

3. Surface Treatment (Optional)

To enhance performance and durability, surface options include:

• Nickel-plated Copper Busbar

• Tin-plated copper coating

• Silver plating (for high-end applications)

Advantages of Copper Tubular Busbar

1. High Current Capacity

Designed to handle large electrical loads efficiently in Power Distribution Busbar systems.

2. Lightweight Structure

The hollow design reduces overall weight while maintaining conductivity.

3. Better Heat Dissipation

Improved airflow through the tubular structure reduces overheating risk.

4. Strong Mechanical Strength

Despite being lightweight, it maintains excellent structural stability.

5. Flexible Customization

Can be manufactured as part of custom Copper Busbar Manufacturer solutions.

Applications of Copper Tubular Busbar

A Copper Tubular Busbar is widely used in:

Electrical Systems

• Electrical Busbar panels

• Switchgear and distribution boxes

• MCB Copper Busbar Assemblies

Industrial Power Systems

• Heavy machinery power supply

• Factory distribution networks

• Automation systems

Energy & Infrastructure

• Power distribution busbar systems

• Renewable energy installations

• Substations and transformers

Copper Tubular Busbar vs Solid Busbar

Why Use Copper Tubular Busbar?

Choosing a Copper Tubular Busbar over traditional busbars provides:

• Higher efficiency in power transmission

• Reduced system weight

• Improved thermal performance

• Flexible design for complex electrical layouts

That is why many engineers prefer it in modern Electrical Busbar systems.

Custom Manufacturing Options

A professional Custom Copper Busbar Manufacturer can provide:

• Custom shapes and bending

• CNC machining and drilling

• Nickel-plated Copper Busbar surface treatment

• Insulation coating options

• OEM/ODM production for electrical systems

This ensures the busbar fits perfectly into the intended Power Distribution Busbar system.

The Copper Tubular Busbar is a modern and efficient solution for high-current electrical applications. Whether in MCB Copper Busbar systems, industrial equipment, or power distribution networks, its tubular design offers an excellent balance of conductivity, strength, and thermal performance.

With options such as Hollow Copper Tubular Busbar, Solid Copper Tubular Busbar, and Nickel-plated Copper Busbar, it provides flexible solutions for different engineering requirements. Working with a professional Custom Copper Busbar Manufacturer ensures optimal performance, safety, and system efficiency in all electrical applications.
