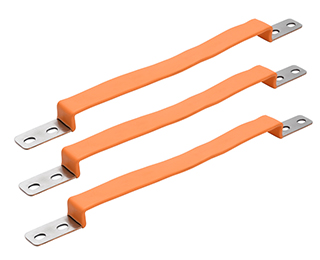

Copper Busbar Connectors: Key Component For Efficient Power Transmission

Copper Busbar Connector (CBC) is a key component in power systems for connecting and transmitting electricity. Due to their excellent electrical conductivity, mechanical strength and corrosion resistance, Copper Busbar connectors are widely used in power engineering, industrial equipment and renewable energy systems.

Features of copper busbar connectors

• Excellent electrical conductivity: copper conductivity as high as 59.6 MS / m (Mega Siemens / m), much higher than other commonly used metals. This gives copper busbar connectors extremely low resistance and energy loss in power transmission.

• High Mechanical Strength: Copper has good mechanical strength and toughness, and is able to withstand large current loads and mechanical stresses, ensuring the reliability and stability of the connection.

• Corrosion resistance: copper can form a dense layer of copper oxide film in the atmosphere, preventing further oxidation and corrosion, extending the service life of the connector.

• Good thermal performance: the high thermal conductivity of copper helps to dissipate heat quickly, avoiding overheating phenomenon, improving the safety and reliability of the power system.

Application areas of copper busbar connectors

• Power transmission and distribution: In high-voltage and low-voltage power distribution systems, copper busbar connectors are used to connect individual power equipment and ensure stable power transmission.

• Industrial equipment: In motors, transformers, switchgear and other industrial equipment, copper busbar connectors are used for power transmission and electrical connections between equipment.

• Building Electrical Systems: In commercial and residential buildings, copper bus connectors are used in main switchboards and electrical systems to ensure reliable power transmission.

• Renewable Energy: In solar and wind energy systems, copper busbar connectors are used to connect photovoltaic modules, inverters and other key components to ensure efficient energy transfer.

Manufacturing process for copper busbar connectors

• Extrusion: Copper busbar connectors are typically manufactured through an extrusion process. Copper ingots are pressed through a die at high temperatures to form the desired shape and size.

• Stamping: In some cases, copper busbar connectors are manufactured through a stamping process. Copper sheets are stamped into the desired shape and subsequently treated to ensure a smooth and flat surface.

• Soldering and Assembly: In complex applications, copper busbar connectors need to be soldered and assembled to meet specific design requirements. The soldering process ensures a robust and electrically conductive connection.

Importance of copper busbar connectors in power systems

• Improve energy efficiency: The low resistance of copper busbar connectors reduces energy loss during power transmission and improves overall system efficiency.

• Ensure system reliability: The high mechanical strength and corrosion resistance of copper ensures a stable and reliable connection, reducing the frequency of failures and maintenance.

• Supports high current applications: In applications where high currents need to be transmitted, the excellent electrical and thermal properties of copper busbar connectors ensure safe and reliable power transmission.

Copper busbar connectors play an indispensable role in power transmission and distribution systems thanks to their excellent electrical conductivity, high mechanical strength and corrosion resistance. With the growing demand for electricity and technological advances, the application of copper busbar connectors will be further expanded to provide efficient and reliable power connection solutions for various industries. Copper busbar connectors play an important role in promoting the development of modern power systems and ensuring the efficient use of energy.
