The manufacturing process of Aluminum PVC Coating Busbars involves a series of highly specialized steps, each contributing to ensuring the final product's performance, durability, and reliability in electrical systems. Aluminum PVC Coating Busbars are essential components in power distribution, industrial automation, and various electrical applications, where their excellent electrical conductivity, corrosion resistance, and mechanical strength are critical. The manufacturing process of these busbars is a combination of precision metalworking, coating technologies, and quality assurance procedures. Below is an overview of the key stages in the production of Aluminum PVC Coating Busbars.
The first step in the manufacturing of Aluminum PVC Coating Busbars is the selection of high-quality raw materials. The primary material used is aluminum, which is chosen for its excellent electrical conductivity, light weight, and corrosion resistance. Aluminum alloys are commonly used, with specific grades selected based on the required electrical and mechanical properties. The aluminum is sourced in various forms such as rods, bars, or coils, which are then prepared for the next step in the process.
Once the raw aluminum material is selected, the next step is to shape it into the desired form. This typically involves a precision extrusion or rolling process where the aluminum is passed through molds or rollers to form long, uniform strips or bars. This shaping process ensures that the aluminum has the correct dimensions to meet design specifications, such as width, thickness, and length, while also ensuring flexibility for easy installation.
Extrusion Process: In the extrusion process, the aluminum is heated to a malleable state and forced through a die to form the busbar’s shape. This method is commonly used for producing busbars with consistent cross-sections and smooth surfaces.
Rolling Process: For large-volume production, aluminum can also be processed through a rolling mill to produce thinner and more flexible strips suitable for busbar applications.
Before applying the PVC coating, the Aluminum Busbars undergo surface preparation to enhance the adhesion of the coating. This step typically involves cleaning and roughening the surface of the aluminum. Common methods include:
Chemical Cleaning: A chemical solution is used to remove oils, dust, and other contaminants that could affect the bonding of the PVC layer.
Mechanical Abrasive Cleaning: Sandblasting or brushing is used to create a textured surface on the aluminum, improving the mechanical bond between the aluminum and the PVC coating.
Proper surface preparation is essential to ensure that the final busbar has high durability and a long operational lifespan, especially when used in harsh environments.
The next step in the manufacturing process is the application of the PVC (Polyvinyl Chloride) coating. The PVC coating serves several purposes: it provides electrical insulation, increases the busbar's resistance to corrosion, and improves its mechanical durability. There are several methods for applying the PVC coating to the Aluminum Busbars:
Extrusion Coating: This is the most common method, where the prepared Aluminum Busbar is passed through a PVC extrusion machine. The molten PVC material is extruded onto the busbar, forming a uniform and durable layer.
Spray Coating: In some cases, spray coating is used to apply PVC or a PVC compound to the busbar's surface. This method is more labor-intensive but can be used for applications requiring a thinner coating layer.
Dip Coating: The busbars can also be dipped into a heated bath of PVC material, which is then allowed to cool and harden, creating a smooth and durable surface layer.
The thickness of the PVC coating is an important factor in ensuring the busbar's insulation properties and protection from environmental factors such as moisture, chemicals, and physical damage.
After the PVC coating has been applied, the busbars go through a curing process. This step is crucial to ensuring that the coating is properly hardened and bonded to the aluminum surface. Curing is typically done in a controlled oven or heated chamber where the PVC is exposed to elevated temperatures. The heat helps the PVC to fully fuse and bond with the aluminum, creating a strong, durable coating.
Once the curing process is completed, the busbars are allowed to cool slowly. This cooling process ensures that the PVC coating solidifies evenly and reduces any potential stresses in the material.

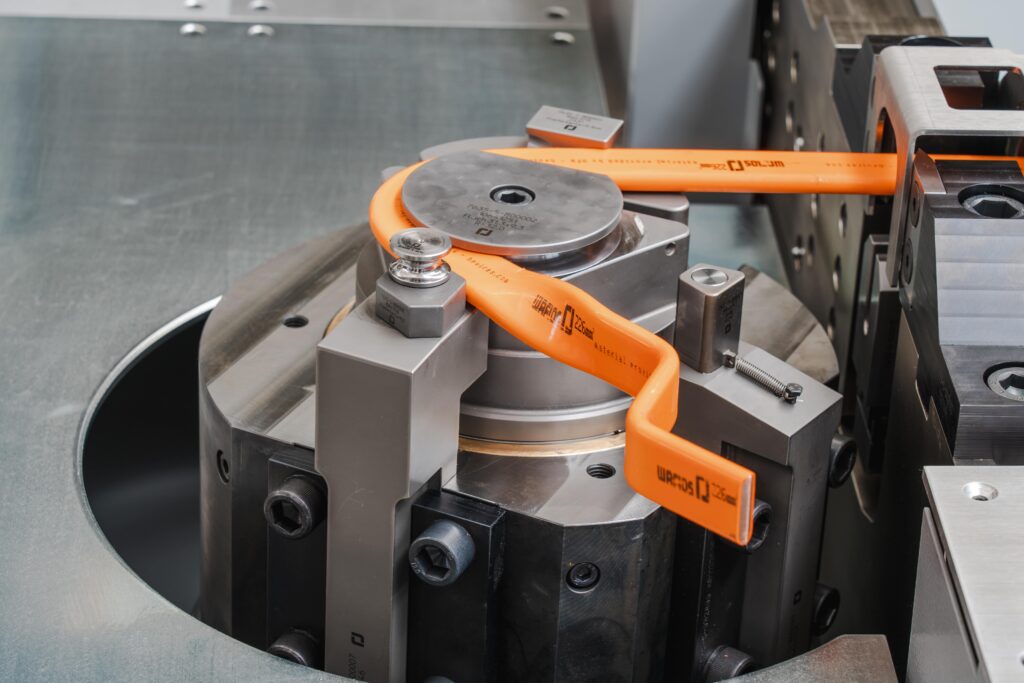

After the PVC-coated aluminum busbars have cooled, they are cut into the required lengths using high-precision cutting equipment. The cutting process is typically done with automatic shears or saws, which ensure clean and precise cuts without damaging the coating. For custom applications, the busbars can also be shaped to meet specific design requirements, such as bent or perforated busbars.
At every stage of the manufacturing process, quality control is of utmost importance. The finished aluminum PVC coating busbars are subjected to rigorous quality assurance tests, including:
Electrical Conductivity Tests: To ensure the busbar maintains the required level of conductivity.
Adhesion Tests: To check the bond between the PVC coating and the aluminum, ensuring the coating will not peel or degrade over time.
Corrosion Resistance Tests: The busbars are exposed to corrosive environments (such as salt spray or humidity chambers) to test their durability and resistance to environmental factors.
Visual Inspection: The busbars are thoroughly inspected for defects, including cracks in the PVC coating, uneven coating thickness, or other physical imperfections.
If the busbars pass all tests, they are then packaged for shipment.
Once the aluminum PVC-coated busbars pass all quality checks, they are carefully packaged to protect them during transport. Packaging includes wrapping the busbars in protective plastic or paper and labeling them for easy identification. Special care is taken to ensure the busbars are not damaged during shipping, as the PVC coating must remain intact.
The manufacturing process of aluminum PVC coating busbars is a highly specialized and technical process that requires precision at every stage. From raw material selection to surface preparation, coating, curing, and final testing, each step ensures that the finished product meets the highest standards of performance, durability, and reliability. With their excellent electrical conductivity, corrosion resistance, and mechanical strength, aluminum PVC-coated busbars are ideal for use in power systems, industrial automation, transportation, and other applications requiring reliable electrical connections.
