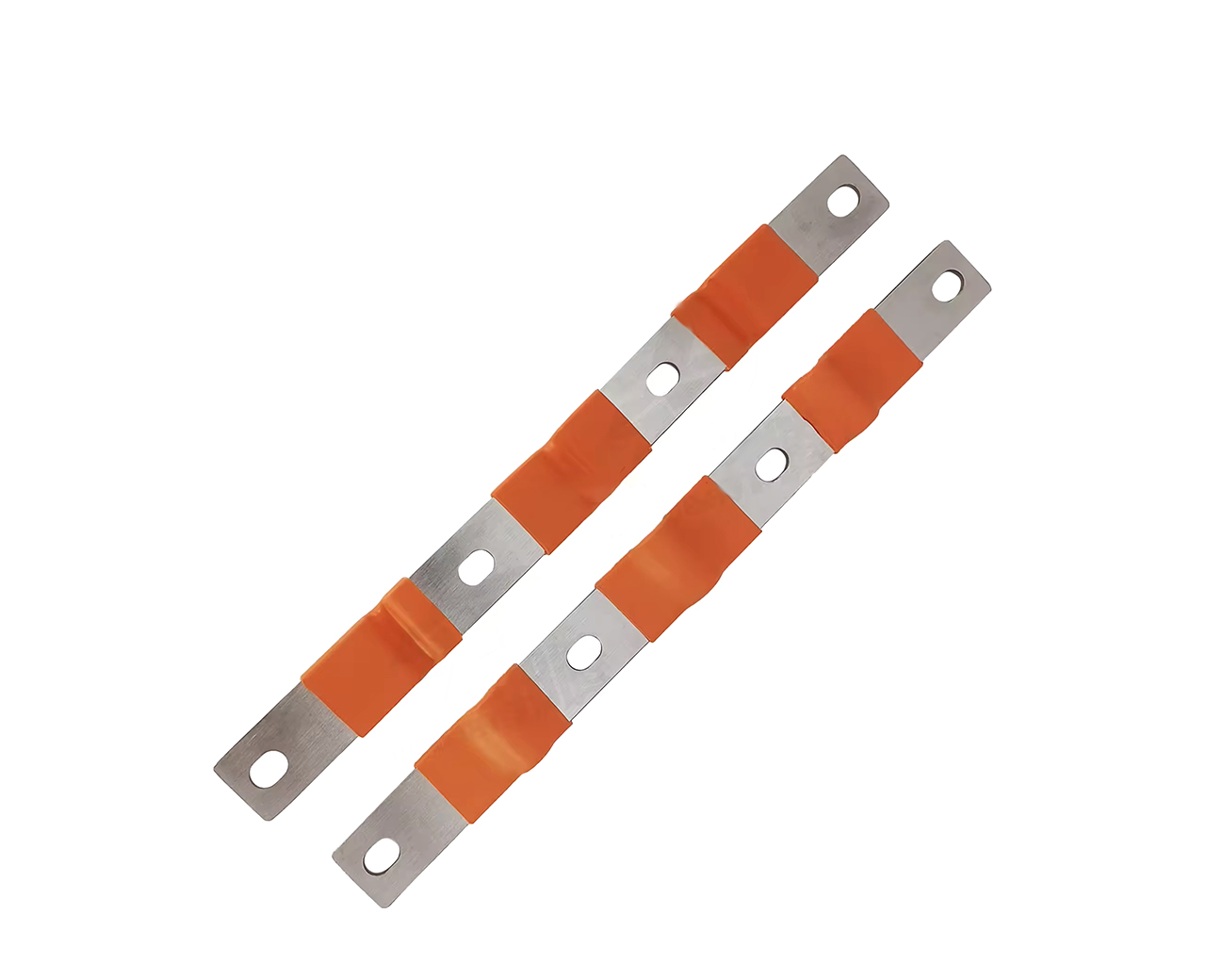

A bus bar is a metallic strip or bar, typically made of copper, aluminum, or brass, that serves as a critical component in electrical power distribution systems. These systems are designed to efficiently distribute high-current power with minimal voltage drop and optimal heat dissipation. Modern bus bars feature low-impedance connections with typical resistance values ranging from 0.1 to 0.5 milliohms per meter, depending on material and cross-sectional area.
Key characteristics of bus bar systems include:
Current Carrying Capacity: Standard Copper Bus Bars can handle 1000-5000A continuously, with some high-capacity designs rated up to 10,000A at 600V AC/DC
Voltage Ratings: Typically designed for 240V to 690V systems, with special configurations reaching 38kV for switchgear applications
Temperature Tolerance: Copper Bus Bars maintain structural integrity up to 105°C continuous operation, with short-term peaks to 250°C
Efficiency: Achieve power transfer efficiency of 99.8% compared to 98.5% for equivalent cable systems
Short-Circuit Withstand: Can sustain 50-100kA for 1-3 seconds without permanent deformation
Bus bar systems are implemented across various industries due to their reliability and space-saving advantages:
In manufacturing plants, bus bars distribute power to heavy machinery with current requirements up to 6300A. The modular design allows for easy reconfiguration when production lines change, with tap-off units providing 100-1600A branch circuits.
Modern hyperscale data centers utilize busway systems rated for 400-1200A per rack row, with power densities reaching 30kW per rack. The plug-in design enables hot-swapping of PDUs without downtime.
Solar farms employ Aluminum Bus Bars with 1500VDC ratings to combine inverter outputs, featuring weather-resistant coatings that withstand UV radiation and -40°C to 85°C temperature cycles.
Electric vehicle charging stations use Copper Bus Bars with 250kcmil cross-sections to deliver 350kW DC fast charging, incorporating liquid cooling for sustained 500A operation.
Naval vessels implement silver-plated bus bars with IP66 enclosures to prevent corrosion in saltwater environments, capable of withstanding 15° continuous roll and 22.5° transient pitch.
Proper bus bar maintenance ensures long-term reliability and prevents catastrophic failures:
Quarterly infrared scans should identify hotspots exceeding 10°C above ambient temperature. Critical connections require torque verification to manufacturer specifications (typically 50-100 Nm for M10 bolts).
Annual micro-ohm measurements should show resistance values below 20μΩ for bolted joints. Any increase beyond 25% of initial values indicates required maintenance.
Megger testing at 1000V DC should demonstrate insulation resistance greater than 1MΩ. For medium-voltage systems (>1kV), perform partial discharge testing at 1.5x operating voltage.
Apply antioxidant compound to aluminum bus bars every 3-5 years, maintaining thickness between 0.1-0.3mm. Copper systems benefit from silver or tin plating in corrosive environments.
Check for proper support spacing (maximum 1.5m for horizontal runs, 2.0m for vertical). Verify expansion joints accommodate 1mm per meter of thermal movement.
Critical maintenance intervals:
Visual inspection: Monthly
Thermal imaging: Quarterly
Torque check: Biannually
Comprehensive testing: Annually
