What are Bus Bars Used for?

In modern electrical engineering, bus bars are one of the most critical components for safe and efficient power distribution. If you are wondering what are bus bars used for, this article explains their function, working principle, common types, installation methods, and key advantages.

What Is a Bus Bar?

A bus bar (or copper bus bar) is a solid strip of conductive metal designed to carry electric current. It serves as a centralized pathway to connect multiple incoming and outgoing circuits within switchboards, distribution panels, or battery systems. Bus bars reduce wiring complexity, improve current flow, and make systems easier to maintain.

How Does a Bus Bar Work?

A bus bar works by providing a low-resistance electrical pathway. Current enters the bus bar from a power source, and multiple connections can be made along its length to supply various loads. This setup allows efficient distribution of power with minimal voltage drop. Whether you are using a Copper Busbar, Flexible Busbar, or PVC copper busbar, the core function remains the same — reliable and safe current distribution.

Common Types of Bus Bars

To fully understand what are bus bars used for, it’s important to know the different types available:

• Copper Busbar – Offers superior conductivity and mechanical strength, making it ideal for high-current systems.

• Flexible Busbar / Flexible Busbar Copper – Braided or laminated design that can absorb vibration and allow movement, widely used in EV battery connections.

• Copper Tinned Busbar – Tin-coated copper bar that resists corrosion and oxidation, perfect for humid or marine environments.

• PVC Copper Busbar – Insulated with PVC coating for touch-safe applications and enhanced electrical safety.

• Copper Tubular Busbar – Hollow tubular design for high current capacity while reducing weight.

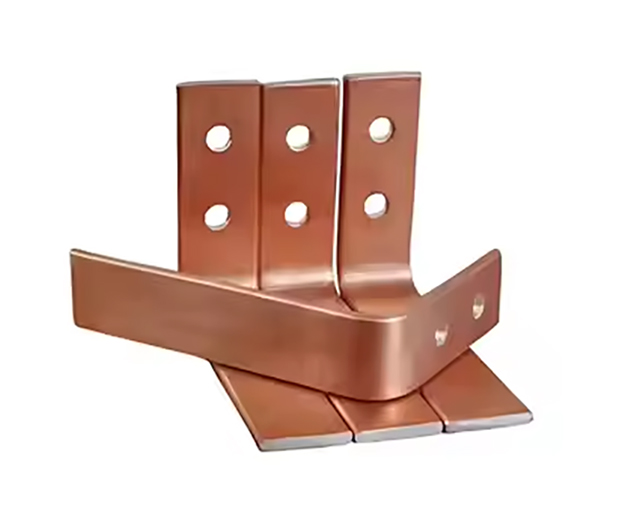

• Hard Copper Busbar – Rigid, strong copper bus bar for heavy-duty industrial installations.

• Copper Connector Busbar – Pre-formed connectors for easy linking between electrical components.

Installation & How to Use Bus Bars

Proper installation is crucial for efficiency and safety. Here’s a step-by-step guide:

1. Sizing & Material Selection – Choose the correct cross-section based on current rating, and select between copper or flexible busbar copper depending on the application.

2. Cutting & Forming – Shape the hard copper busbar or copper tubular busbar to match panel design.

3. Mounting – Secure the bus bar to insulated supports to prevent accidental short circuits.

4. Connection – Use copper connector busbar or bolts to connect circuits securely.

5. Insulation – Apply PVC coating or heat-shrink for additional protection if needed.

6. Testing – Verify current continuity, torque on fasteners, and insulation integrity before energizing.

Applications of Bus Bars

Bus bars are used in a wide range of applications, including:

• Electrical Panels & Switchgear – Distributing current to multiple circuits in industrial and commercial systems.

• Battery Bus Bar Systems – Connecting battery cells in electric vehicles, UPS systems, and solar energy storage solutions.

• Renewable Energy Projects – Used in solar combiner boxes and wind turbine control cabinets.

• Heavy Machinery & Industrial Equipment – Delivering reliable current to motors and control systems.

Advantages of Using Bus Bars

• Efficiency – Copper busbar offers high conductivity with minimal energy loss.

• Space-Saving – More compact compared to multiple parallel wires.

• Durability – Copper tinned busbar and PVC copper busbar provide long service life even in harsh environments.

• Easy Maintenance – Straightforward inspection and replacement.

• Scalability – Additional loads can be connected without redesigning the entire system.

So, what are bus bars used for? They are essential components in electrical power distribution, connecting circuits, reducing wiring complexity, and improving safety. Whether you choose a copper bus bar, flexible busbar copper, or copper tinned busbar, selecting the right type ensures optimal performance and reliability for your electrical system.
