What Is a Busbar in Power System

In modern electrical engineering, busbar systems are the foundation of efficient and reliable power distribution. From substations and data centers to renewable energy and industrial automation, busbars enable the smooth and safe flow of electricity between power sources and multiple loads.
But what exactly is a busbar, and how does a busbar system function within a power network?

1. What Is a Busbar and What Is a Busbar System

A busbar (or electrical bus bar) is a conductive metal strip or bar used to collect, distribute, and transmit electricity within an electrical system.
Typically made of copper or aluminum, busbars are installed inside switchboards, distribution boards, or power systems to serve as a common connection point for multiple circuits.

A busbar system, on the other hand, refers to the entire assembly that includes:

• Conductive bars (usually copper busbars or aluminum busbars)

• Insulators or insulated busbars for protection

• Connectors, fasteners, and mounting supports

Together, these components ensure safe, efficient, and compact power distribution — reducing wiring complexity and improving reliability.

2. Working Principle of Busbar Systems

The working principle of a busbar system is simple yet essential:

• Electrical current enters the busbar from a source such as a generator, transformer, or battery.

• The busbar then distributes power to multiple outgoing circuits simultaneously.

• Because of their high conductivity, busbars reduce voltage drops, heat buildup, and power loss.

In large-scale systems, multiple busbars may operate in parallel — creating main busbars and auxiliary busbars that allow redundancy, load sharing, and maintenance flexibility.

3. Structure and Material Selection

A typical electrical bus bar system consists of:

• Conductor: A flat or tubular bar made from copper or aluminum.

• Insulation Layer: Protective coatings, sleeves, or epoxy insulation to prevent short circuits.

• Support Insulators: Components that hold the busbar in place while providing electrical isolation.

• Copper Busbar Connectors: Precision-engineered joints that ensure stable, low-resistance connections.

Common Materials:

• Copper Busbar: High conductivity, excellent durability, and corrosion resistance.

• Aluminum Busbar: Lightweight and cost-effective, ideal for large installations.

4. Types of Busbars in Power Systems

Busbar systems come in several types to suit different installation needs and performance requirements:

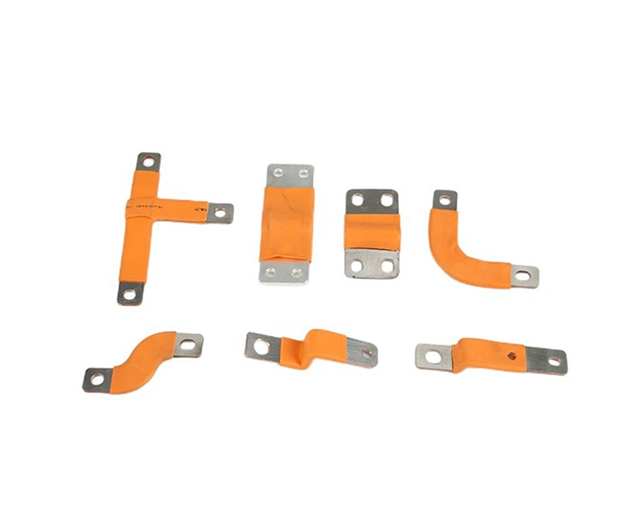

Flexible Busbar

A flexible busbar or Flexible Copper Busbar is made from braided or laminated copper strips.

• Ideal for systems that experience vibration or require compact installation.

• Common in EV battery packs, solar inverters, and power cabinets.

Solid Busbar

A Solid Busbar, including Solid Copper Busbar, provides rigidity and high current-carrying capacity.

• Common in substations and industrial distribution panels.

• Offers excellent heat dissipation and structural strength.

Flexible Aluminum Busbar

A lightweight alternative that provides flexibility with reduced weight, making it suitable for portable and mobile energy systems.

Insulated Busbars

Designed with a protective outer layer, insulated busbars enhance safety and prevent accidental contact — often used in compact enclosures.

5. Advantages of Using Busbar Systems

1. Efficient Power Distribution: Lower resistance and voltage loss compared to traditional wiring.

2. Space-Saving Design: Compact installation ideal for modern equipment and cabinets.

3. Superior Safety: Insulated designs and protective covers reduce the risk of electrical faults.

4. Scalability: Easy to expand or modify when system loads increase.

5. Improved Cooling: Metal surfaces dissipate heat efficiently.

6. Easy Maintenance: Quick inspection and replacement compared to bundled cables.

6. Applications of Busbar Systems

Busbars are used in nearly all areas of electrical engineering and energy management, including:

• Power Plants & Substations – As main current pathways between transformers and switchgear.

• Industrial Automation – Distributing power to motors, drives, and control systems.

• Data Centers – Delivering stable, redundant power to servers.

• Renewable Energy Systems – In solar inverters and wind turbines.

• Battery Storage Systems (BESS) – Using Flexible Copper Busbar or Aluminum Busbar to connect battery modules safely.

• EV Charging Systems – Compact solid copper busbars provide reliable current transfer.

7. How to Design and Select the Right Busbar

To ensure proper performance, several factors should be considered:

• Current Carrying Capacity (A): Determined by cross-sectional area and temperature rise.

• Material: Choose between copper (higher conductivity) and aluminum (lower cost).

• Busbar Layout: Single, double, or triple busbar configurations for redundancy.

• Insulation Requirements: Use insulated busbars for compact or exposed installations.

• Flexibility: Select flexible busbar connectors for vibration-prone systems.

8. Why Choose a Professional Busbar Manufacturer

Selecting a reliable Copper Busbar Manufacturer or Flexible Busbar Supplier ensures high-quality performance and customization.
Manufacturers like us provide:

• OEM / ODM Busbar Customization

• Precision Copper Busbar Connectors

• Flexible or Solid Busbar Assemblies

• Insulated Busbar Design & Testing

• Laminated Busbar Production for Power Electronics

By combining technical expertise with strict quality standards, a professional busbar manufacturer ensures durability, performance, and compliance with international safety requirements.

A busbar in a power system — or more broadly, a busbar system — is the heart of modern electrical distribution. Whether you choose a Flexible Copper Busbar, Solid Copper Busbar, or Aluminum Busbar, the goal remains the same: to deliver stable, efficient, and safe power across all connected systems.
