How to Connect a Busbar

In electrical power distribution systems, the busbar plays a vital role in conducting electricity efficiently between different components. Understanding how to connect a busbar correctly ensures reliable power delivery, safe operation, and long-term system stability. This article explains what a busbar is, the materials and types used in electrical systems, and practical methods for connecting busbars with cables, terminals, switchgear, batteries, and equipment.

What Is a Busbar and What Is a Busbar Used For?

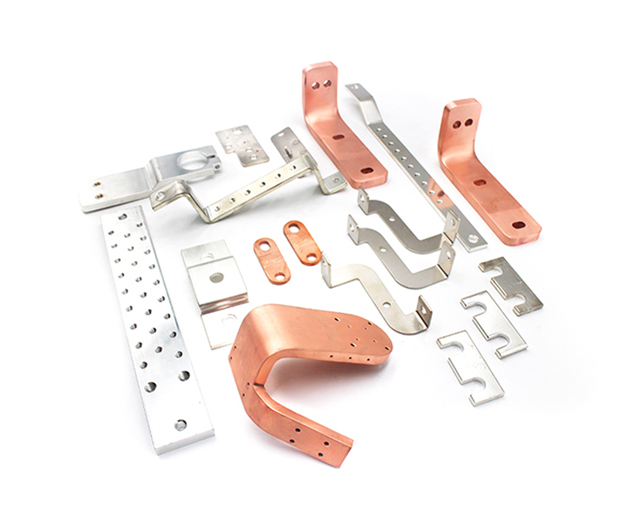

A busbar (also written as bus bar) is a conductive metal bar or strip used to collect, carry, and distribute electrical current within a power system. It functions as a central electrical junction connecting incoming and outgoing circuits.

Key Functions of a Busbar

• Distributes current to multiple circuits

• Reduces wiring complexity

• Enables flexible electrical layouts

• Handles high current loads with lower resistance

Common Applications

• Power distribution cabinets and switchgear systems

• Battery energy storage systems (BESS)

• Electric vehicles (EV) and charging systems

• Data centers and telecommunications

• Industrial equipment and power plants

Busbar Materials

The performance of a busbar depends heavily on its material properties:

Types of Electrical Busbars

How to Connect a Busbar

Connecting a busbar correctly ensures stable electrical contact, minimizes resistance, and prevents overheating.

1. Preparing the Busbar

• Ensure the busbar surface is clean, oxide-free, and flat

• Use abrasive pads or brushing to remove oxidation (especially for aluminum)

• Apply contact grease (recommended for aluminum-aluminum or aluminum-copper interfaces)

2. Connecting Busbar to Cable

Method: Cable Lug + Bolt Connection

Steps:

1. Crimp a metal lug onto the cable end.

2. Align the lug with the busbar mounting hole.

3. Use bolts, washers, and nuts to tighten the connection.

4. Follow torque standards to avoid overheating or loosening.

3. Connecting Busbar to Terminal Blocks

• Use busbar terminal blocks with clamping screws

• Suitable for control circuits, neutral bars, and grounding systems

4. Connecting Busbar to Switchgear or Equipment

• Mount the busbar directly to equipment terminals

• Use correctly rated busbar connector plates

• Maintain minimum electrical clearance and creepage distance

5. Battery Busbar Connection (EV & BESS Systems)

Used for high-current DC applications.

Steps:

1. Align busbar across battery cell terminals.

2. Secure using torque-specific fasteners.

3. Use insulated flexible copper busbars where movement or vibration occurs.

This setup enables stable battery interconnection and reduces resistance losses.

Busbar Connection Safety Considerations

• Follow rated current and temperature limits

• Ensure correct bolt tightening torque

• Use insulation covers in exposed areas

• Avoid mixed metals without proper transition connectors

• Follow applicable standards (IEC, UL, GB/T)

Understanding how to connect a busbar is essential for safe and efficient electrical system design. The selection of solid copper busbars, aluminum busbars, or Flexible Busbars depends on application requirements such as current load, space constraints, weight considerations, and cost.

A properly designed busbar system simplifies power distribution, improves reliability, and supports scalable electrical infrastructure — whether in industrial switchgear, data centers, or battery energy storage systems.
