What Is Busbar in Electrical Power System

In an electrical power system, a busbar is a metallic strip or bar, typically made of copper, aluminum, or brass, that conducts electricity within a switchboard, distribution board, substation, or other electrical apparatus. It serves as a common connection point for multiple circuits, enabling the efficient collection and distribution of electrical power.

Detailed Explanation

A busbar acts as the backbone of the power distribution system, carrying large currents of electricity and distributing them to outgoing feeder circuits. Instead of relying on multiple wires, a single busbar can manage high current loads safely and efficiently. Busbars are usually made of highly conductive metals like copper or aluminum, designed in flat, solid, or flexible forms depending on the application. Their shape allows for better heat dissipation and reduced electrical resistance.

Functions of a Busbar in Power Systems

1. Power Distribution – Transfers electricity from incoming feeders to multiple outgoing circuits.

2. System Simplification – Reduces the complexity of wiring and improves reliability.

3. Current Carrying – Handles large amounts of electrical current safely.

4. Maintenance and Safety – Allows easy isolation of circuits during maintenance.

Common Types of Busbars

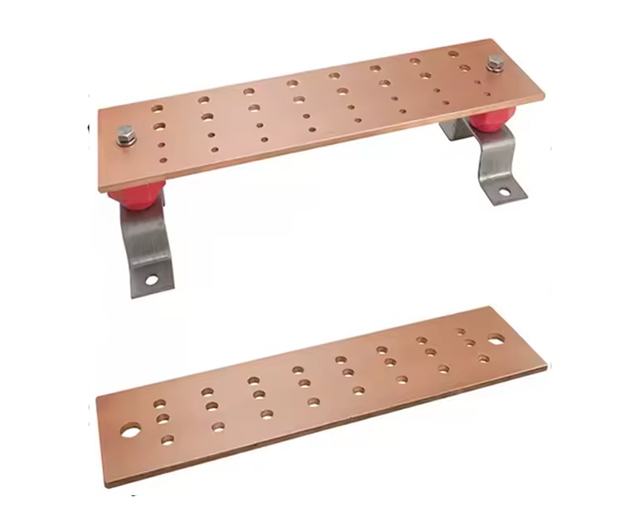

• Copper Busbar – High conductivity, corrosion resistance, and mechanical strength.

• Aluminum Busbar – Lightweight and cost-effective alternative to copper.

• Flexible Busbar – Braided or laminated design for vibration resistance and space-limited installations.

• Solid Busbar – Rigid, stable structure for fixed installations and heavy-duty applications.

Applications

• Power substations

• Switchgear and control panels

• Battery energy storage systems

• Data centers

• Electric vehicles and charging stations

• Renewable energy systems (solar, wind)

A busbar in an electrical power system is the main current-carrying element that makes power distribution efficient, organized, and reliable. It ensures smooth power flow, minimizes energy loss, and enhances system safety.
