What Is the Purpose of Busbar

A busbar is a critical component in modern electrical systems, designed to efficiently conduct and distribute electrical power. Unlike traditional cabling systems, busbars provide a centralized, low-resistance path for large currents, simplifying power distribution and improving system reliability. But what exactly is the purpose of a busbar, and why is it so widely used across industries?

1. What Is a Busbar and Its Purpose

A busbar is a metallic strip or bar—typically made from copper or aluminum—used to carry electrical current within a busbar system, switchgear, distribution board, or battery bank. Its primary purpose is to:

• Efficiently transmit high current between power sources and loads.

• Serve as a common connection point for multiple circuits.

• Simplify wiring in complex electrical systems.

• Provide reliable and safe electrical connections, reducing the risk of loose wires and faults.

In short, a busbar is the backbone of power distribution, ensuring smooth, stable, and efficient electricity flow.

2. Functions of a Busbar

The purpose of a busbar extends beyond just carrying current. Its functions include:

1. Power Distribution: Distributes electricity from the main supply to multiple circuits or devices.

2. Current Handling: Capable of safely managing high current loads without overheating.

3. System Organization: Reduces clutter by replacing numerous cables with a single conductor.

4. Safety and Maintenance: Facilitates isolation of circuits for inspection or maintenance without disrupting the entire system.

5. Voltage Stabilization: Maintains uniform voltage across connected loads.

3. Types of Busbars

Busbars come in a variety of types and materials, each suited for specific applications:

• Copper Busbar: Offers excellent conductivity, durability, and corrosion resistance; commonly used in high-current systems.

• Aluminum Busbar: Lightweight and cost-effective alternative to copper, ideal for medium-current applications.

• Flexible Busbar / Flexible Copper Busbar / Flexible Aluminum Busbar: Laminated or braided design allows easy bending, vibration absorption, and compact installation, perfect for battery packs, EVs, and power electronics.

• Solid Busbar / Solid Copper Busbar: Rigid design for heavy-duty power distribution in industrial plants or substations.

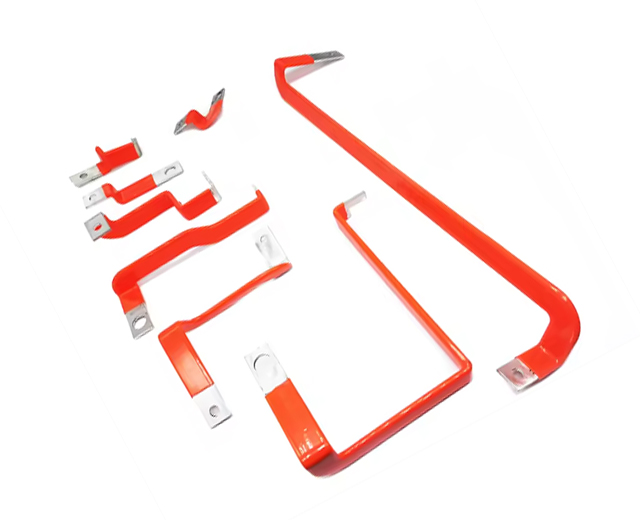

• Insulated Busbar: Coated with PVC, epoxy, or other insulating materials for safety and compact layouts.

Each busbar type ensures the purpose of efficient power distribution is fulfilled while accommodating specific environmental and electrical requirements.

4. Applications of Busbars

The purpose of busbars can be seen clearly in their wide range of applications:

• Power Distribution Panels: Central hub for electricity distribution in industrial and commercial buildings.

• Switchgear and Control Panels: Reliable and organized connection for multiple circuits.

• Battery Banks & EV Systems: Efficient current management for battery busbar connections in renewable energy and electric vehicles.

• Renewable Energy Systems: Solar panels and wind turbines use busbars for efficient energy collection and distribution.

• Data Centers & UPS Systems: High-capacity power delivery to critical equipment.

• Marine and Railway Power Systems: Stable and compact power distribution for transportation applications.

5. Advantages of Busbars

The purpose of busbars also aligns with the multiple advantages they offer:

• High Current Capacity: Can carry large currents safely.

• Reduced Energy Loss: Lower resistance than traditional cable wiring.

• Compact Design: Saves space and reduces clutter in electrical panels.

• Heat Dissipation: Flat, wide structure allows better cooling.

• Easy Installation & Maintenance: Modular and simple to connect with copper busbar connectors or lugs.

• Reliability & Safety: Provides stable electrical connections, minimizing risk of faults.

6. Installation and Maintenance Tips

To ensure the purpose of busbars is fully achieved, correct installation and maintenance are crucial:

1. Clean the surface to remove oxidation before connecting.

2. Use appropriate busbar connectors or bolts for mechanical stability.

3. Apply anti-corrosion paste when connecting copper or aluminum busbars.

4. Ensure proper insulation for safety.

5. Regularly check for loose connections, overheating, or signs of corrosion.

Following these steps enhances the durability and performance of busbars in any system.

The purpose of a busbar is to provide an efficient, reliable, and organized solution for electrical power distribution. From industrial plants and battery banks to renewable energy systems and data centers, busbars ensure smooth electricity flow, high current handling, and improved system reliability.

By using copper busbar, aluminum busbar, flexible copper busbar, solid busbar, or insulated busbars, engineers and designers can achieve safe and efficient power distribution for modern electrical systems.
