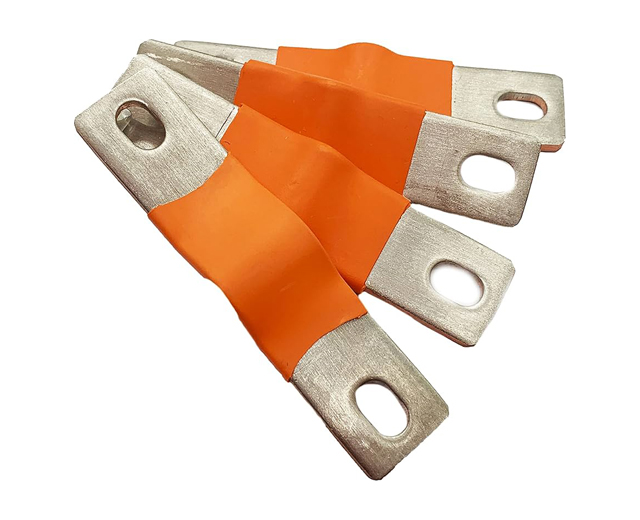

Copper Busbar for Energy Storage

As the renewable energy and electric vehicle (EV) industries continue to grow, the demand for efficient and reliable power distribution components in energy storage systems is rising rapidly. Copper Busbar for Energy Storage plays a vital role in ensuring stable and efficient current transmission within Battery Energy Storage Systems (BESS), photovoltaic storage, UPS systems, power grids, and EV charging stations. Its excellent electrical conductivity, thermal management capabilities, and mechanical strength make it an ideal solution for high-performance energy systems, particularly in applications requiring high current copper busbar solutions.

Applications

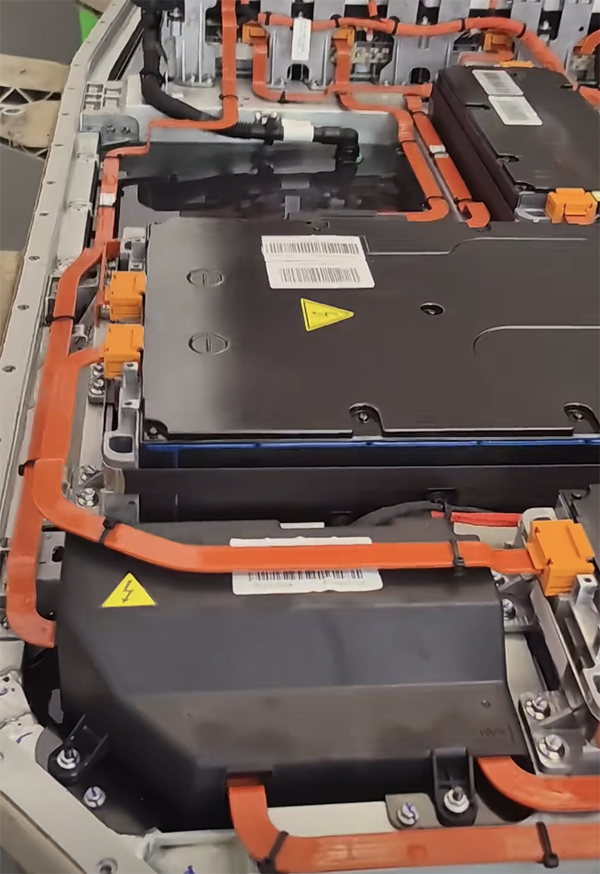

1.Battery Energy Storage Systems (BESS): Connects battery cells and modules to ensure safe and efficient power flow.

2.Renewable Energy Integration: Links inverters, transformers, and storage units in solar and wind power systems to enhance energy conversion efficiency.

3.UPS Systems: Delivers stable power distribution for critical infrastructure.

4.EV Charging Stations: Supports high-power transmission for fast charging operations, with custom EV busbar connectors designed for high efficiency.

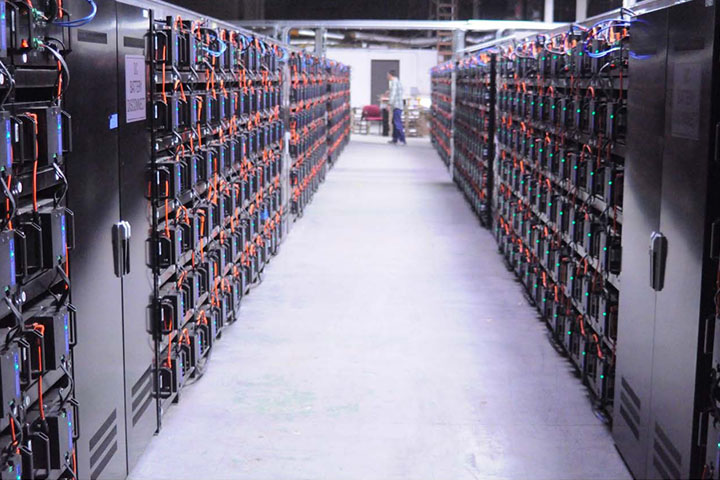

5.Grid Energy Storage: Distributes energy efficiently between storage modules and the grid in large-scale power storage applications.

Technical Advantages

1.High Conductivity: Made from high-purity T2 copper, ensuring minimal energy loss and efficient current flow, perfect for high conductivity copper busbar applications.

2.Outstanding Thermal Management: Helps dissipate heat, preventing overheating and extending equipment life, especially in energy storage system busbar applications.

3.Excellent Mechanical Strength: Withstands vibration and impact for reliable performance in harsh environments, ensuring longevity in industrial copper busbar use.

4.Custom Design Capabilities: Offers flexibility in dimensions and configurations to meet diverse application needs, including custom Copper Busbar Connectors for Battery Energy Storage Systems and EV busbars.

5.High Safety Standards: Engineered to handle high current loads with reliable insulation for secure operation, meeting the needs of high voltage copper busbar requirements.

Technical Specifications

Manufacturing Process

1.Material Selection: Uses high-conductivity T2 copper for optimal electrical performance in high current copper busbar applications.

2.Forming & Processing: Precision-shaped via stamping or CNC bending, ensuring consistency and quality in copper busbar for renewable energy systems.

3.Surface Treatment: Tin-plating, nickel-plating, or silver-plating for oxidation resistance and improved solderability, enhancing the durability of copper busbar for energy storage.

4.Insulation Coating: Various materials applied for enhanced electrical safety, perfect for insulated copper busbar applications in critical systems.

5.Quality Control: Rigorous testing on conductivity, strength, and thermal resistance ensures the reliability of the Copper Busbar for Energy Storage.

FAQ

1. What is a Copper Busbar for Energy Storage?

A Copper Busbar for Energy Storage is a high-conductivity electrical component designed to connect battery cells, modules, or power units in energy storage systems (ESS). It ensures efficient current flow and thermal management in applications such as BESS, UPS, and EV charging stations.

2. What are the benefits of using copper busbars in energy storage systems?

Copper busbars provide excellent electrical and thermal conductivity, high mechanical strength, and reliability under extreme conditions. They support long-term performance, energy efficiency, and safety in systems like solar storage and battery management systems.

3. Where are Copper Busbars for Energy Storage commonly used?

They are widely used in:

• Battery Energy Storage Systems (BESS)

• Energy Storage System Busbars for solar and wind energy

• EV Charging Stations

• Uninterruptible Power Supply (UPS)

• Power grid backup systems

4. What types of copper busbars are available for energy storage?

There are several types based on design and flexibility:

• Flexible Copper Busbar

• Laminated Copper Busbar

• Solid Copper Busbar

• Custom Copper Busbar Connector

5. Can the copper busbar be customized for different ESS applications?

Yes, Custom Copper Busbar Connectors can be fully tailored in terms of size, thickness, shape, surface finish (tin/nickel/silver plated), and insulation material to meet the specific needs of different energy storage systems.

6. What insulation and surface treatments are available?

Common insulation materials include PVC, PET, PA12, and epoxy coatings. Surface treatments include tin plating, nickel plating, or silver plating to improve corrosion resistance and conductivity.

7. Are copper busbars safe for high-voltage applications?

Yes, Copper Busbars for Energy Storage are engineered for high current and voltage environments. They meet flame resistance standards like UL94V-0 and support insulation voltages up to 5000V AC.
