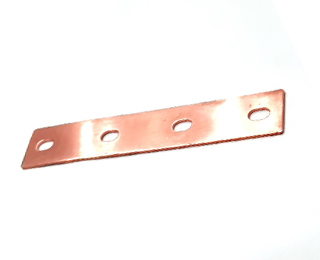

Solid Copper Busbar
A Hard Copper Busbar is a rigid, high-strength electrical conductor made from hard drawn copper such as T2 Hard Copper Busbar or C11000 Hard Copper Busbar. Unlike flexible busbars, the Solid Copper Busbar maintains its shape under load, providing long-lasting stability in fixed installations. With High Conductivity Copper busbar material, it ensures efficient electrical power transmission while offering outstanding mechanical durability.
The manufacturing process of a Hard Drawn Copper Busbar involves several precise steps:
Material Selection – Using high-purity electrolytic copper (≥ 99.9% Cu) with certified chemical composition to achieve ≥ 97% IACS conductivity.
Cold Drawing or Extrusion – Producing a rigid copper busbar with enhanced tensile strength.
Precision Cutting & Punching – Custom widths, thicknesses, and drilled holes for easy installation.
Surface Treatment – Optional tin-plating, nickel-plating, or silver-plating to improve corrosion resistance, conductivity, and wear resistance.
Hard Copper Busbars are widely used in:
Power plants and substations
Electrical switchgear and distribution cabinets
Industrial machinery electrical panels
UPS and backup power systems
Renewable energy installations (solar, wind, hydro)
Electroplating and electrolytic processing equipment
The T2 Hard Copper Busbar and C11000 Hard Copper Busbar are particularly favored in high-current, high-reliability environments where consistent performance is essential.
| Parameter | Specification |
|---|---|
| Material Grades | T2 Copper (GB Standard), C11000 ETP Copper (ASTM Standard) |
| Type | Hard Drawn Copper Busbar (H), Half-Hard Copper Busbar (1/2H) |
| Electrical Conductivity | ≥ 97% IACS |
| Shape Options | Flat Bar, Rectangular Bar, Square Bar, Custom Profiles |
| Width Range | 10 mm – 300 mm |
| Thickness Range | 2 mm – 30 mm |
| Length | Up to 6,000 mm (Custom Lengths Available) |
| Surface Treatments | Tin Plating, Nickel Plating, Silver Plating |
| Operating Temperature | Up to 200°C |
| Applications | Power Plants, Substations, Switchgear, Industrial Electrical Panels, Renewable Energy Systems, Electroplating Equipment |
High Electrical Conductivity – ≥ 97% IACS for efficient power transmission.
Rigid Structure – Maintains shape under mechanical stress, ideal for fixed installations.
Excellent Mechanical Strength – Higher tensile strength compared to annealed copper.
Corrosion Resistance – Enhanced with optional tin, nickel, or silver plating.
Customizable Sizes – Width 10–300 mm, thickness 2–30 mm, length up to 6 meters.
High Temperature Resistance – Stable performance up to 200°C.
When designing a High Conductivity Copper Busbar or Rigid Copper Busbar, consider:
Current Capacity – Match cross-sectional area to current requirements.
Thermal Performance – Ensure heat dissipation in high-load environments.
Installation Environment – Choose surface treatment for corrosive or outdoor conditions.
Mechanical Requirements – Select hard or half-hard temper for rigidity or moderate flexibility.
Customization – Provide CAD drawings for precise fabrication.
G and N Fortune Limited is a trusted supplier of Hard Drawn Copper Busbar, T2 Hard Copper Busbar, and C11000 Hard Copper Busbar with:
Premium Material Quality – Sourced from certified copper mills.
Advanced Manufacturing – Precision cutting, punching, and plating services.
Global Export Experience – Serving clients in power generation, manufacturing, and renewable energy industries worldwide.
Strict Quality Control – Each solid copper busbar is inspected for conductivity, dimensional accuracy, and plating adhesion.
Customization Capability – OEM and ODM services available for specific project needs.
Q1: What is the difference between a Hard Copper Busbar and a Soft Copper Busbar?
A: A hard copper busbar has higher tensile strength and rigidity, making it ideal for fixed installations, while soft copper busbar is more flexible for dynamic connections.
Q2: Can you produce custom-sized copper busbars?
A: Yes, we manufacture rigid copper busbars in various widths, thicknesses, and lengths according to your specifications.
Q3: Do you provide plating options?
A: Yes, we offer tin, nickel, and silver plating for enhanced performance and corrosion resistance.
Q4: What copper grades are available?
A: We supply T2 Hard Copper Busbar (GB) and C11000 Hard Copper Busbar (ASTM), both with ≥ 97% IACS conductivity.
