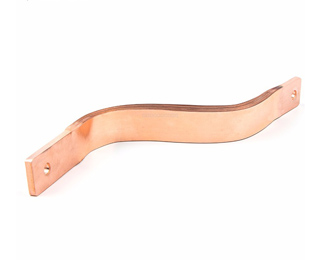

Solid Copper Bus Bar

A Solid Copper Busbar is a vital electrical component designed for reliable power transmission and distribution. Made entirely from pure copper, this product delivers exceptional electrical conductivity and mechanical strength, making it an indispensable solution for residential, commercial, and industrial applications. Whether you are seeking a Copper Busbar, Copper Bar, or Copper Flat Bar, our high-quality products ensure minimal power loss, efficient heat dissipation, and superior durability.

What is a Solid Copper Busbar?

A Solid Copper Busbar is a rigid, flat or rectangular electrical copper busbar used to conduct electricity with minimal resistance. Known for its high thermal and electrical conductivity, it is ideal for power systems that require reliable and efficient current distribution. Compared with other conductive materials, high conductivity Copper Busbars offer superior performance, corrosion resistance, and long-term reliability.

Manufacturing Process of Solid Copper Busbars

Our solid copper busbars are produced using advanced Bus Bar Fabrication techniques, ensuring high precision and performance:

1. Material Selection: We use premium-grade electrolytic copper busbar material to guarantee superior conductivity.

2. Shaping & Machining: The copper is processed into copper flat bar or custom shapes through punching, drilling, and CNC machining.

3. Surface Finishing: To improve performance, we can provide options such as tinned copper busbar plating, which enhances corrosion resistance.

4. Quality Inspection: Each busbar undergoes rigorous electrical and mechanical testing to ensure compliance with international standards.

5. Cutting & Packaging: Customized lengths and copper busbar connectors are prepared to meet the customer’s installation needs.

Key Characteristics and Advantages

• Superior Electrical Conductivity: The use of pure copper busbar ensures low resistance and minimal power loss.

• Excellent Thermal Management: The copper bar construction effectively dissipates heat, improving overall system efficiency.

• Corrosion Resistance: Options such as tinned copper busbar offer additional protection in humid or corrosive environments.

• Durability & Strength: Designed to withstand mechanical stress, vibration, and high current loads.

• Long Service Life: A solid copper busbar reduces maintenance frequency, saving long-term costs.

Applications of Solid Copper Busbars

• Power Distribution Systems: Connecting panels, transformers, and circuit breakers using electrical copper busbars for safe, efficient energy transmission.

• Renewable Energy: Ideal for solar and wind installations where high conductivity copper busbars maintain performance under harsh outdoor conditions.

• Electric Vehicles (EVs): Used for high-voltage connections between batteries and motors, ensuring reliable current flow.

• Industrial Machinery: Copper busbars provide robust current distribution for heavy-duty equipment and automated systems.

• Telecommunications & Data Centers: Copper Grounding Bus Bars minimize electrical noise and improve system reliability.

• UPS Systems: Essential for backup power applications, guaranteeing uninterrupted operation during outages.

Design Considerations

When designing or selecting a solid copper busbar, consider the following factors:

• Current & Voltage Capacity: Ensure the copper busbar connector can handle required loads without overheating.

• Dimensions & Shape: Choose from Flat Copper Busbar, rectangular, or custom profiles for space optimization.

• Insulation & Coatings: Apply insulation where necessary for safety.

• Environmental Conditions: Consider tinned copper busbar for added resistance to oxidation.

• Mechanical Strength: Ensure proper thickness to prevent bending or damage during operation.

Why Choose Our Solid Copper Busbars?

We specialize in manufacturing solid copper busbars, offering customizable solutions for different industries. Whether you need electrolytic copper busbars for high conductivity, copper grounding busbars for safety applications, or copper busbar connectors for assembly, we provide reliable, precision-engineered products that meet global standards.

By combining advanced bus bar fabrication technology with high-quality pure copper, we deliver products that optimize power distribution efficiency, reduce energy losses, and ensure long-lasting system performance.

FAQ – Solid Copper Busbar

1. What is a Solid Copper Busbar used for?

A Solid Copper Busbar is used to conduct and distribute electrical power efficiently. It is commonly installed in power distribution panels, switchgear, transformers, UPS systems, data centers, and renewable energy applications. Its high conductivity copper busbar construction ensures minimal energy loss and reliable current flow.

2. What is the difference between a Solid Copper Busbar and a Copper Bar?

A copper bar generally refers to raw copper stock, while a solid copper busbar is specifically manufactured for electrical applications with precise dimensions, drilled holes, and connectors. Copper flat bars are often processed into electrical copper busbars during fabrication.

3. Why choose Pure Copper Busbar instead of Aluminum Busbar?

A Pure Copper Busbar provides better electrical conductivity (up to 60% higher than aluminum), lower resistance, and superior thermal management. This makes it ideal for high-current applications where efficiency and safety are critical.

4. What are the benefits of a Tinned Copper Busbar?

A Tinned Copper Busbar has a thin layer of tin coating to protect against oxidation and corrosion, especially in humid or outdoor environments. It also improves solderability and extends service life.

5. How do I select the right Copper Busbar Size?

Busbar size depends on current carrying capacity, voltage drop, and installation space. Our engineering team can help calculate the required copper flat bar dimensions and recommend the best copper busbar connector solution for your project.

6. Can you customize Solid Copper Busbars?

Yes, we offer custom copper busbar fabrication, including punching, bending, drilling, and surface finishing. Whether you need electrolytic copper busbar, copper grounding busbar, or copper busbar connectors, we can produce according to your exact specifications.
