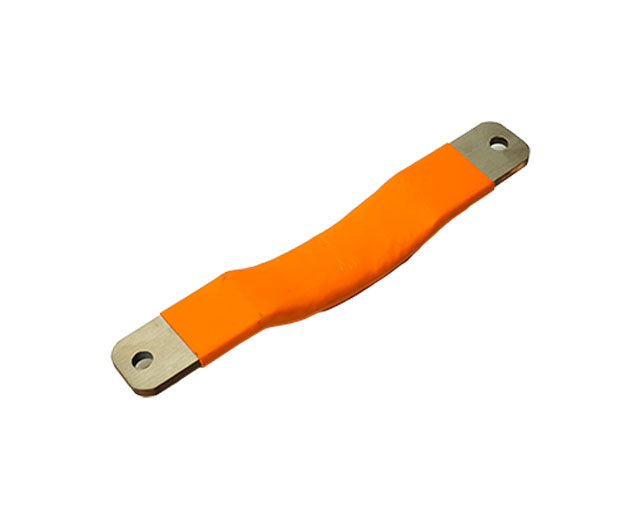

Insulated Bus Bar

As modern electrical systems continue to demand higher current capacity, better safety, and more compact installation, Insulated Bus Bar solutions have become an essential component in electric vehicles (EV), battery energy storage systems (ESS), switchgear, power distribution equipment, and industrial applications.

At G&N Fortune Limited, we specialize in manufacturing Insulated Copper Bus Bar, Insulated Aluminum Bus Bar, and Insulated Flexible Bus Bar solutions with customized dimensions, insulation materials, and current ratings to meet different project requirements.

What Is an Insulated Bus Bar?

An Insulated Bus Bar (Insulated Busbar) is a conductive Copper Bus Bar or Aluminum Bus Bar covered with an insulation layer that prevents short circuits, electrical leakage, and accidental contact while efficiently carrying high current.

Compared with bare busbars, an insulated bus bar offers:

• Higher electrical safety

• Better insulation performance

• More compact installation

• Improved reliability

• Reduced maintenance

How Does an Insulated Busbar Work?

The Electrical Bus Bar consists of a conductive metal core and an outer insulation layer.

Current Transmission

The copper or aluminum conductor transfers electrical current with very low resistance, minimizing power loss.

Bus Bar Insulation

The insulation layer isolates the conductor from surrounding metal parts and other conductors, helping prevent:

• Short circuits

• Electric shock

• Current leakage

• Arc faults

Types of Insulated Bus Bars

Insulated Copper Bus Bar

Our Insulated Copper Bus Bar provides excellent conductivity and high current carrying capacity, making it ideal for EV battery packs and power distribution systems.

Insulated Aluminum Bus Bar

The Insulated Aluminum Bus Bar offers a lightweight and cost-effective solution for large-scale electrical systems.

Insulated Flexible Bus Bar

Our Insulated Flexible Bus Bar and insulated flexible copper bars are designed for applications requiring vibration resistance and flexible installation.

Solid Insulated Busbar

Solid insulated busbar solutions provide high mechanical strength and stable electrical performance for switchgear and industrial equipment.

Custom Bus Bar Solutions

As a professional Busbar Manufacturer, we provide full Custom Bus Bar services.

Customization options include:

• Material: Copper or Aluminum

• Busbar thickness and width

• Current rating

• Insulation material

• Flexible or rigid structure

• Bending and forming

• Hole position and size

• Surface treatment

• OEM & ODM production

Technical Specifications

Applications

Our Battery Bus Bar and insulated busbar products are widely used in:

• Electric Vehicles (EV)

• Battery Energy Storage Systems (ESS)

• Battery Packs

• Cell Contact Systems (CCS)

• Switchgear Cabinets

• Distribution Panels

• Solar Power Systems

• Industrial Equipment

• Charging Stations

• Rail Transit

Advantages of Our Insulated Bus Bars

• High current carrying capacity

• Excellent Bus Bar Insulation

• Compact installation

• Lower voltage drop

• Better heat dissipation

• High mechanical strength

• Long service life

• Easy installation

• Maintenance-free operation

Why Choose G&N Fortune Limited?

Professional Busbar Manufacturer

Years of experience in precision busbar manufacturing and insulation processing.

Full Customization

Support for Custom Bus Bar designs based on customer drawings and specifications.

Strict Quality Control

Comprehensive inspections ensure reliable electrical and mechanical performance.

Global Supply Capability

Stable production capacity and fast delivery for worldwide customers.

Frequently Asked Questions

What is an insulated bus bar?

An insulated bus bar is a copper or aluminum conductor covered with insulation to safely carry high current while preventing short circuits and electrical leakage.

What is the difference between a busbar and an insulated busbar?

A standard busbar is bare metal, while an insulated busbar includes an insulation layer for improved safety and compact installation.

Can insulated bus bars be customized?

Yes. We provide fully customized Insulated Copper Bus Bar, Insulated Aluminum Bus Bar, and Insulated Flexible Bus Bar solutions.

What industries use insulated busbars?

They are widely used in EV batteries, energy storage systems, switchgear, power distribution, industrial automation, and renewable energy applications.
