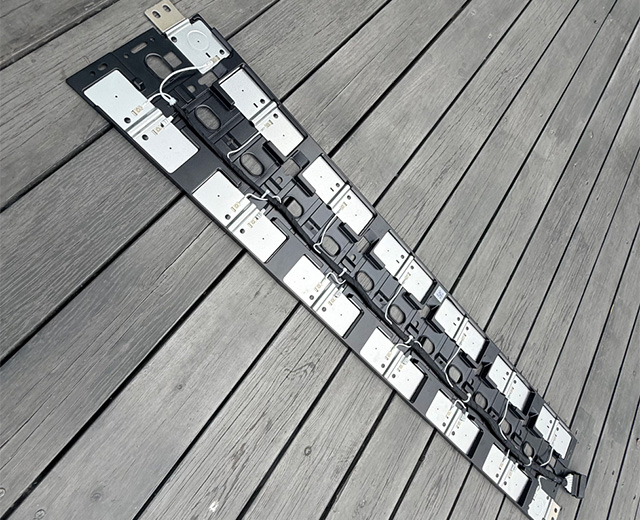

Battery CCS

A Battery CCS (Cell Contact System) is a critical integrated component used in modern lithium battery packs for electric vehicles (EV), hybrid electric vehicles (HEV), plug-in hybrid electric vehicles (PHEV), and Energy Storage Systems (ESS). It combines electrical conduction, voltage sampling, temperature monitoring, and signal transmission into one compact assembly, enabling safer, lighter, and more efficient battery pack designs.

At G&N Fortune Limited, we specialize in manufacturing custom Battery CCS solutions, including EV battery busbar assemblies, FPC CCS systems, and integrated Cell Contact Systems for EV batteries.

What Is Battery CCS?

Battery CCS (Cell Contact System) is an integrated electrical connection system used inside lithium battery packs. It connects individual battery cells and communicates with the Battery Management System (BMS).

A typical Battery Cell Contact System includes:

• Copper or aluminum Busbars

• Flexible Printed Circuit (FPC CCS)

• Voltage sampling circuits

• NTC temperature sensors

• Cell contact plates

• Connectors

• Insulation layers

• Plastic carrier structure

The main purpose of a Battery CCS for EV Battery is to replace traditional wire harness systems, reducing complexity while improving performance and reliability.

How Does Battery CCS Work?

The working principle of a Battery CCS Assembly is based on five key functions:

Current Transmission

The battery Busbar assembly connects cells in series or parallel to ensure stable current flow with minimal resistance.

Voltage Sampling

The FPC CCS system collects voltage data from each individual cell and sends it to the BMS for real-time monitoring.

Temperature Monitoring

NTC sensors integrated into the CCS continuously monitor cell temperature to prevent overheating and thermal runaway.

Signal Communication

All voltage and temperature data is transmitted to the Battery Management System for balancing and control.

Safety Protection

Some Battery CCS designs include fuse or protection structures to improve battery safety in abnormal conditions.

Battery CCS vs Traditional Wire Harness

Compared with traditional wiring systems, Battery CCS for EV battery packs offers:

• Higher integration level

• Reduced wiring complexity

• Lower assembly cost

• Better reliability

• Lighter weight

• Higher automation compatibility

• More accurate signal transmission

Product Specifications & Custom Options

We provide both standard and fully custom Battery CCS solutions based on customer requirements.

Technical Specifications

Types of Battery CCS

Standard Battery CCS

Suitable for mass production EV battery modules with stable layouts.

Custom Battery CCS

Fully customized design based on battery pack structure, electrical requirements, and assembly process.

FPC CCS (Flexible Printed Circuit CCS)

Lightweight solution designed for high energy density battery packs.

Integrated CCS Assembly

Combines busbars, sensors, and connectors into one modular system for automated production.

Key Features of Battery CCS

High Electrical Conductivity

Using high-quality copper busbar for battery pack and aluminum materials for lightweight designs.

High Integration Design

Combines multiple functions into one CCS Assembly, reducing system complexity.

Lightweight Structure

Replaces traditional harnesses with flexible busbar technology, reducing overall battery weight.

High Reliability

Stable performance under vibration, thermal cycling, and high-current environments.

OEM & Custom Engineering

Supports full custom battery CCS design for different EV and ESS applications.

Applications

Our Battery CCS solutions are widely used in:

• Electric Vehicles (EV)

• Hybrid Electric Vehicles (HEV)

• Plug-in Hybrid Electric Vehicles (PHEV)

• Energy Storage Systems (ESS)

• Electric buses and trucks

• Lithium battery packs

• Battery modules

• Industrial energy systems

Advantages of Battery CCS

• Improved battery safety

• Accurate voltage monitoring

• Reliable temperature sensing

• Reduced wiring complexity

• Higher energy efficiency

• Lower production cost

• Easy automation integration

• Compact battery design

Why Choose Our Battery CCS?

We provide complete customized Battery CCS solutions, including:

• Custom Cell Contact System design

• EV battery busbar assembly manufacturing

• FPC CCS integration

• Flexible busbar solutions

• OEM Battery CCS production

• Full engineering support from prototype to mass production

With advanced manufacturing capability and strict quality control, we ensure stable performance and consistent quality for global EV and ESS customers.

Frequently Asked Questions

What is Battery CCS?

Battery CCS is an integrated cell connection system used in EV battery packs for current conduction, voltage sampling, and temperature monitoring.

What is the difference between Battery CCS and busbar?

A busbar only conducts current, while Battery CCS integrates current conduction, signal sampling, and thermal monitoring.

Can Battery CCS be customized?

Yes, we provide full OEM/ODM customization including layout, materials, sensors, and structure design.

What industries use Battery CCS?

It is widely used in EVs, energy storage systems, and lithium battery manufacturing.
