A busbar is a critical component in electrical power distribution systems, responsible for carrying and distributing high current between different circuits in a safe and efficient way. One of the most important design decisions in any Panel Board Busbar System is selecting the right material. So, what is the best material for a busbar?
In most modern electrical applications, copper is widely recognized as the best material for busbars, especially for high-current, high-reliability systems such as industrial panels, data centers, renewable energy systems, and electric vehicles.
The main materials used in busbar manufacturing include copper, aluminum, and copper-clad aluminum. Each has different electrical and mechanical properties.

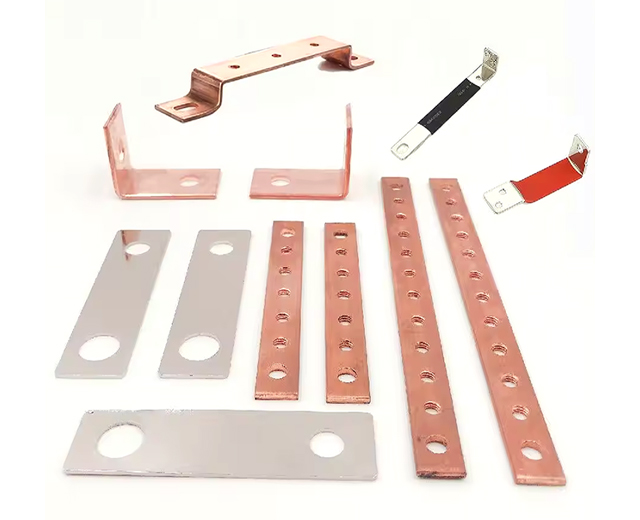

A Copper Busbar for Panel Board is the most commonly used solution in high-performance electrical systems.
Key advantages of Copper Busbar in Electrical Panel applications:
High conductivity (≈98% IACS or higher) reduces power loss
Low resistivity ensures efficient current transmission
Excellent thermal conductivity (401 W/m·K) improves heat dissipation
High mechanical strength withstands short-circuit forces up to 50kA
Long service life with options like tin or silver plating for corrosion resistance
Because of these properties, High Conductivity Copper Busbar is considered the industry standard for demanding applications.
Aluminum is sometimes used where weight and cost are key concerns.
Lighter than copper (about 60% weight reduction)
Lower cost
However, higher resistivity means larger cross-section is required
More prone to oxidation and contact resistance issues
This material combines copper’s conductivity with aluminum’s lightweight structure.
Better conductivity than pure aluminum
Lower cost and weight than copper
Still less reliable than full copper in high-current systems
A busbar in a panel board is a conductive strip used to distribute electrical power from the main supply to multiple outgoing circuits. In a Panel Board Copper Busbar system, copper bars act as the central electrical backbone, ensuring stable and efficient power distribution.
The reason copper is widely preferred in Electrical Panel Copper Busbar systems includes:
Superior electrical conductivity minimizes energy loss
High thermal stability supports continuous heavy load operation
Excellent mechanical strength resists vibration and fault currents
Compatibility with tin-plated and silver-plated finishes improves corrosion resistance
Suitable for compact and high-density Panel Board Busbar System designs
Copper Busbars for Panel Board systems are widely used in:
Industrial power distribution panels
Data center UPS and busway systems
Renewable energy systems (solar and wind inverters)
Marine and offshore electrical systems
High-rise building electrical risers
Electric vehicle and battery systems
Modern industries often require Custom Copper Busbar for Panel Board solutions based on specific electrical and mechanical needs, including:
Size and thickness customization
Tin-plated or silver-plated surface options
Flexible or laminated structures
High-current capacity designs up to thousands of amperes
As a result, many Copper Busbar manufacturers and Panel Board Copper Busbar suppliers provide tailored engineering support for different industries.
So, what is the best material for a busbar?
In most electrical engineering applications, copper is the best material for busbars due to its unmatched conductivity, thermal performance, and mechanical reliability. While aluminum and hybrid materials can be used in cost- or weight-sensitive projects, Copper Busbar in Electrical Panel systems remains the most reliable and widely adopted solution.
